Sinew and snake skin backed Heavy Yew Flat bow 68#@28″ (Bow No: 23)

Leave a Reply

This bow was built from a Yew stave which I salvaged from a pile of yew logs cut down by tree surgeons a few years ago. If I’d know in advance that this particular yew tree was scheduled for felling, then I’d have kindly asked the tree surgeons to have left the better logs long and scar free. But unfortunately I got there too late and they had butchered most of the nice clean limbs.

After wiping away the tears and a bit of searching through the carnage I was able to recover was the one stave that was used in this build. Thankfully this one stave was pretty decent. It was almost clean across one face and fairly straight viewed face on. Side on however was a bit less straight.

The stave measured 70″ long and viewed from the side, right smack in the middle was some deflex to the tune of around about an inch and a half overall negative tip to tip. There was a good chance that steam bending could pull that deflex out of the handle but I figured it would be fine left alone so long as the outer thirds of the limbs were flicked a little to compensate for the natural deflex positioned in what would be the handle in the finished bow.

So after taking the bark off and chasing off a few rings of sapwood, I reduced the edges and the belly material enough so that I could heat some reflex into the last 10 inches of the limbs outer thirds. This added reflex was able to bring the overall deflex to reflex ration back to a level playing field. Which is always where I prefer to start from.

After a good bit of cooling off time I roughed out the face profile so I could inspect the string alignment and was pleased to see that there was no need for any other heat corrections. And after a bit of whitling here and there I was happy with the overall shape and size of the bow.

Given the shear amount of material I had to work with on this stave, I felt confident in being able to produce a bow which would be a bit heavier than what I usually aim for. And given that I intended to sell this bow, I wanted to maximise it’s longevity, durability and performance by sinew backing it thus increasing its potential draw weight even further.

After sinew backing and a 6 month curing process I finished this bow and shot it in over a couple of weeks. The 1/4″ positive tiller held good and she performed with great power and cast. Over the chrono she consistently recorded arrow speeds of around 165 fps with a 550 grain arrow. And with no noticeable hand shock or kick, she was a pleaser to shoot in, despite the heavier than personally preferred draw weight of 65lbs.

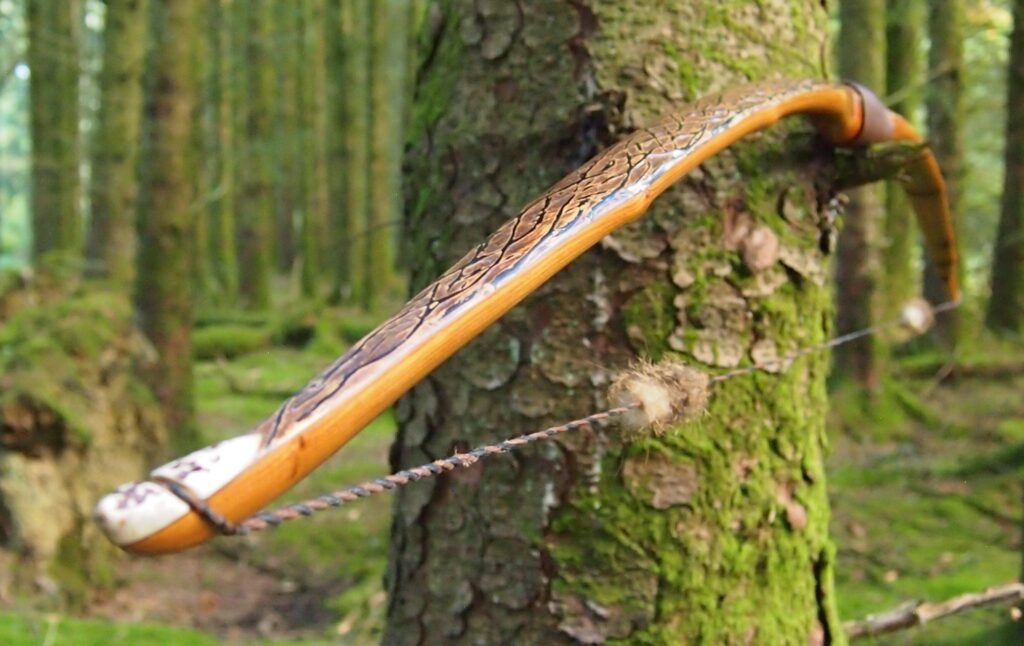

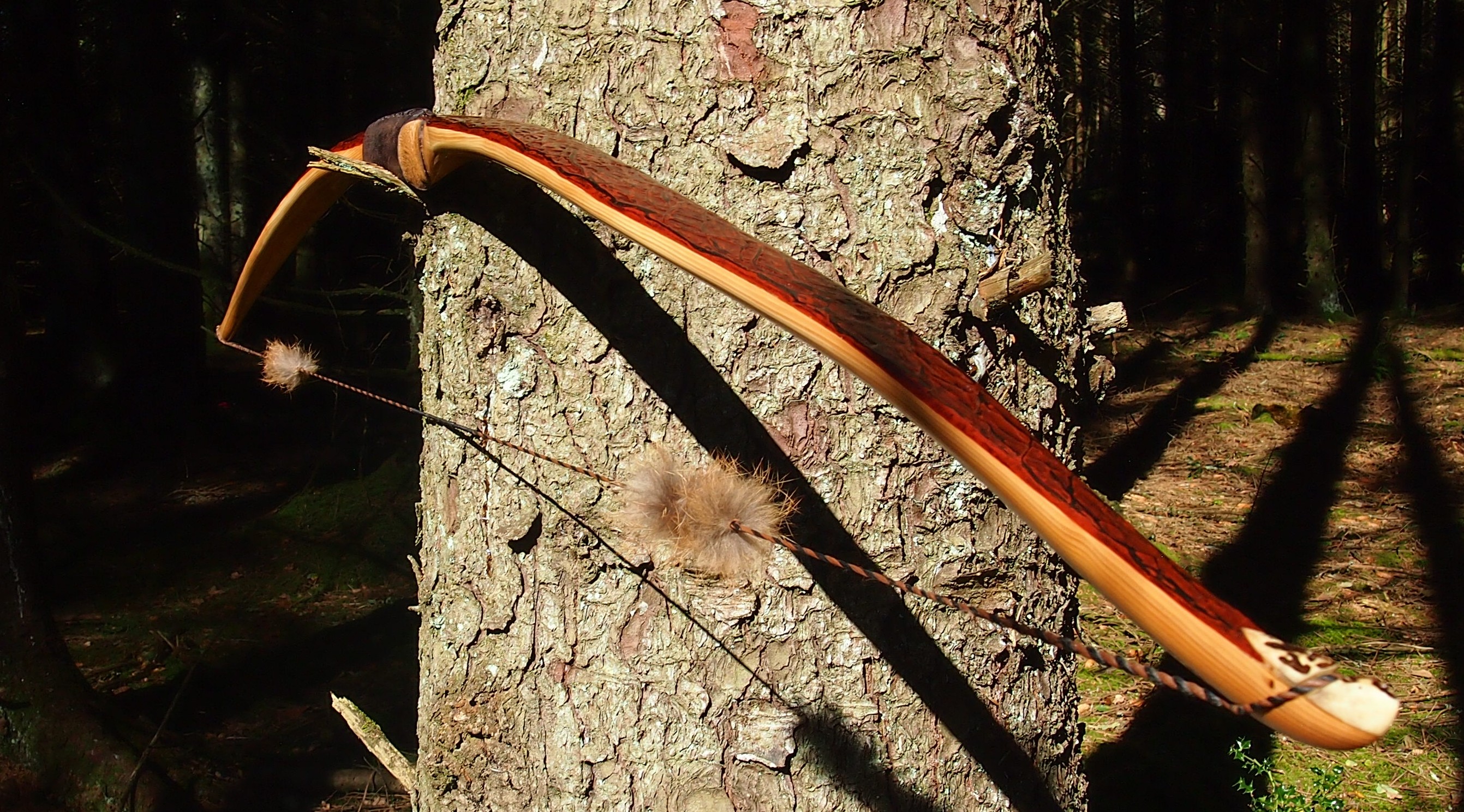

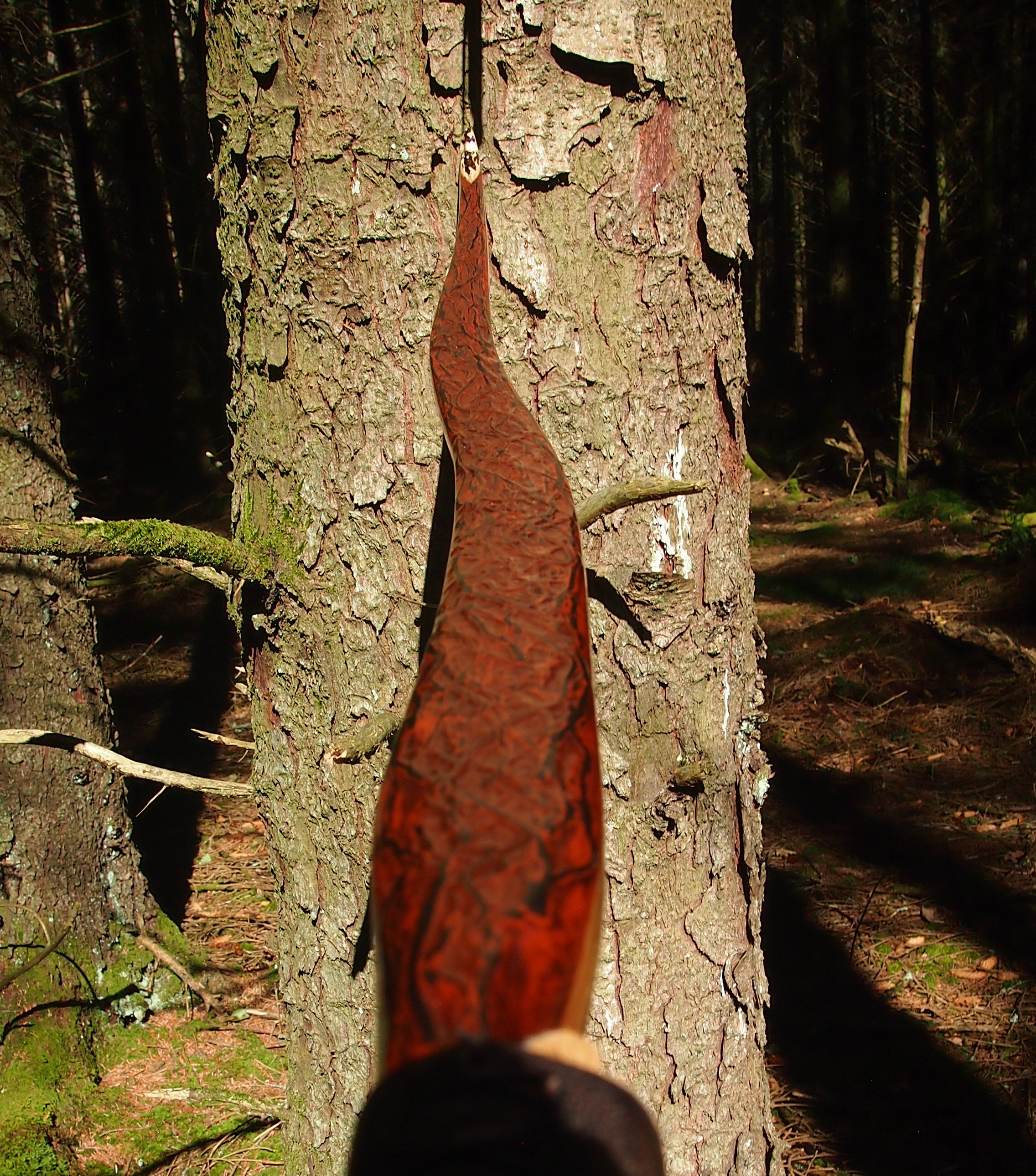

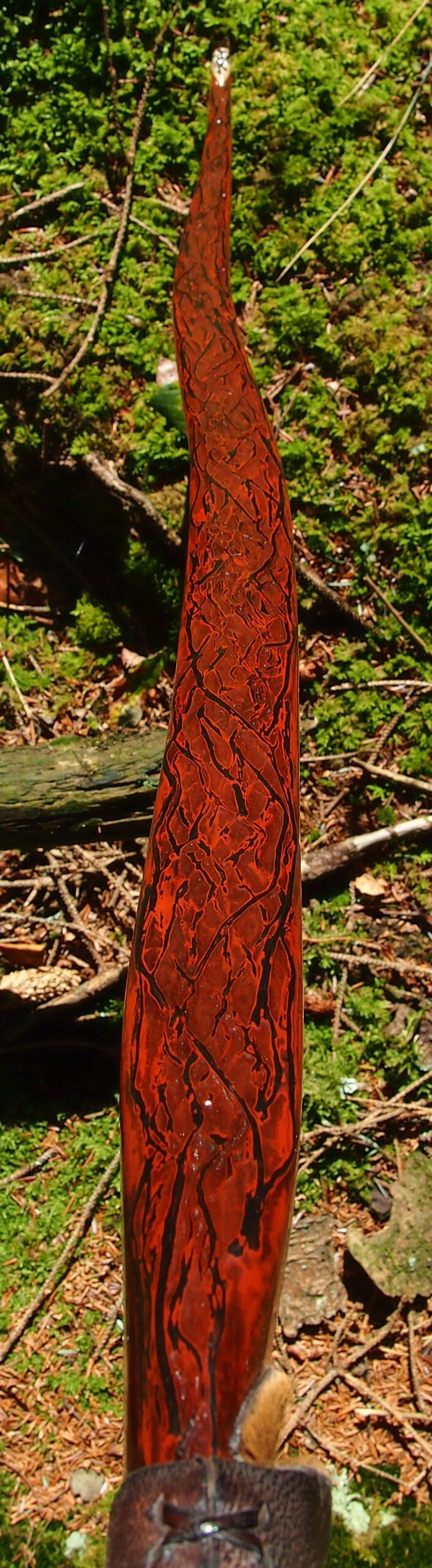

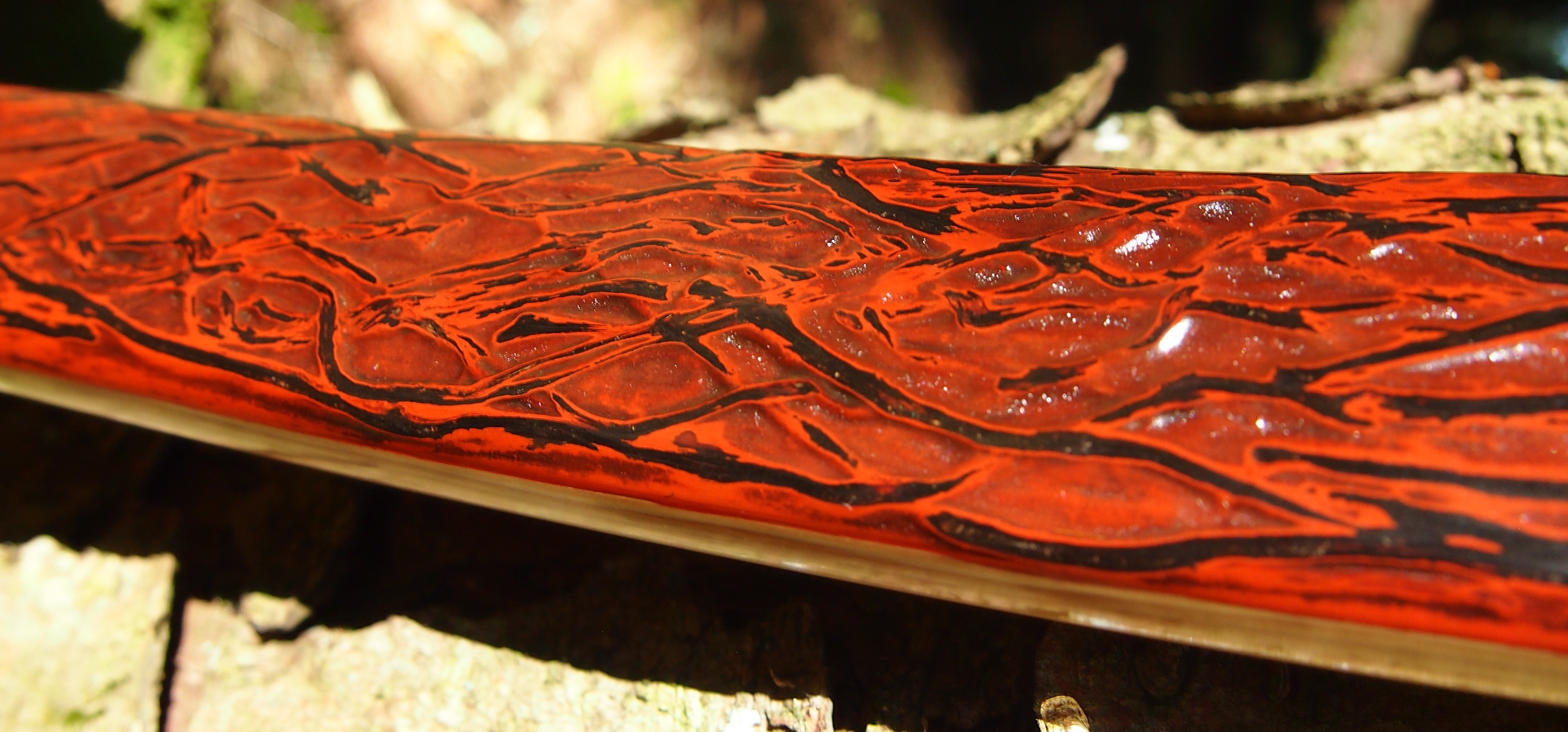

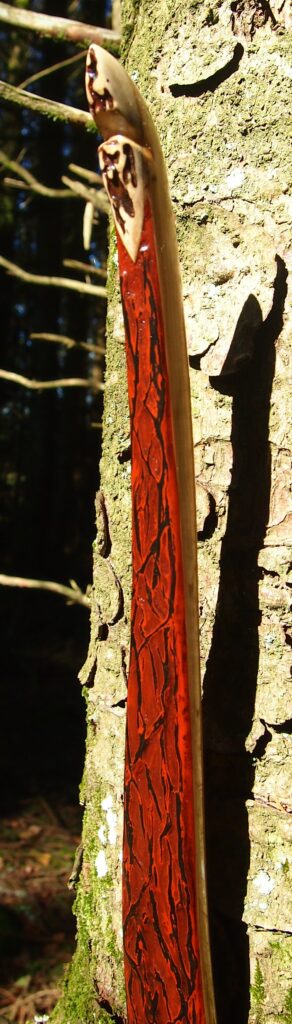

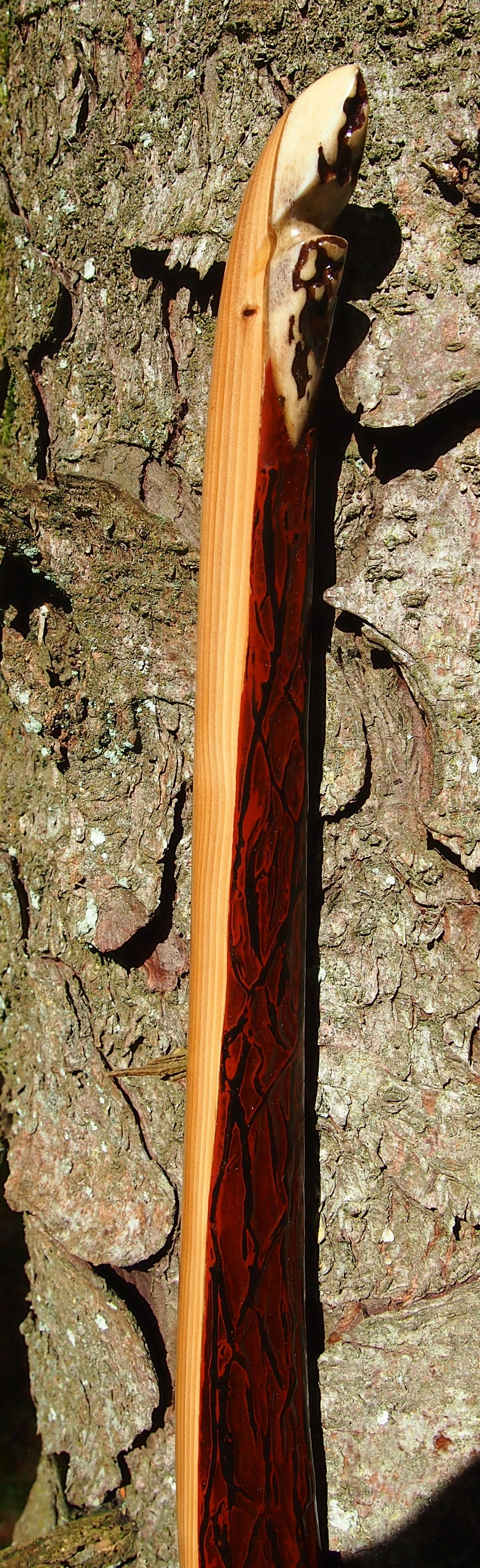

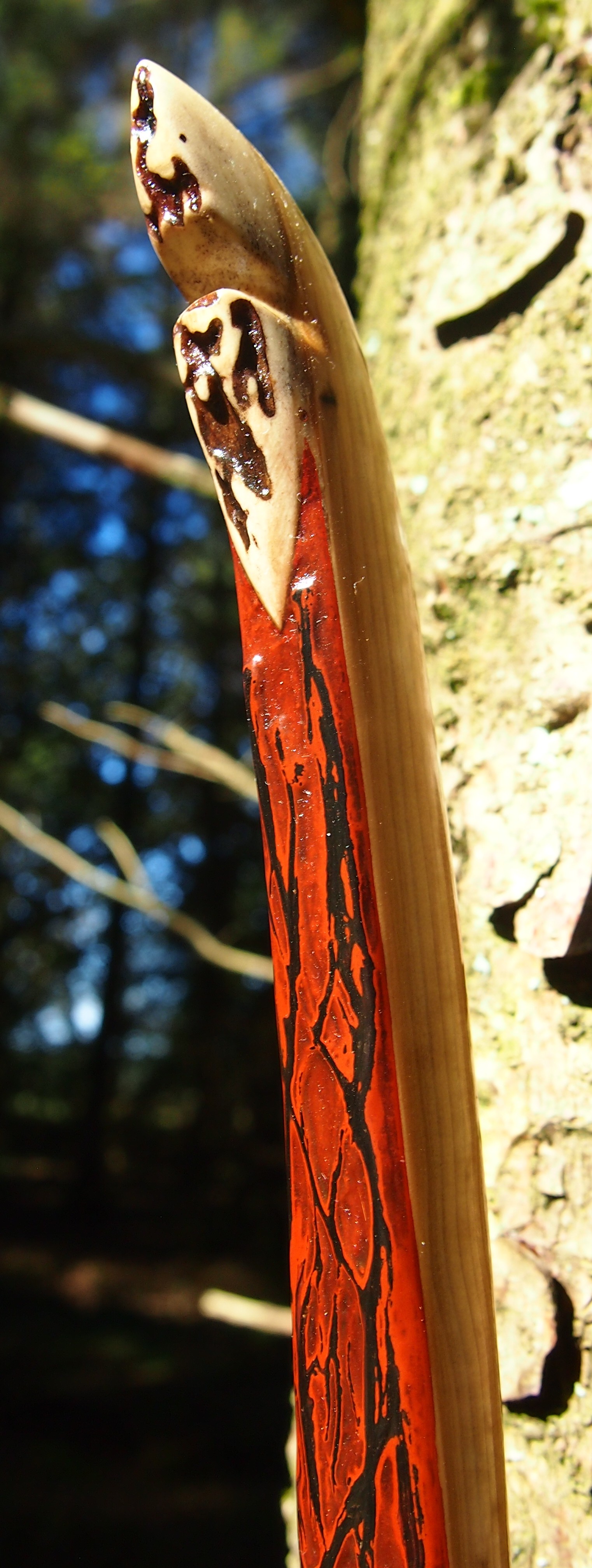

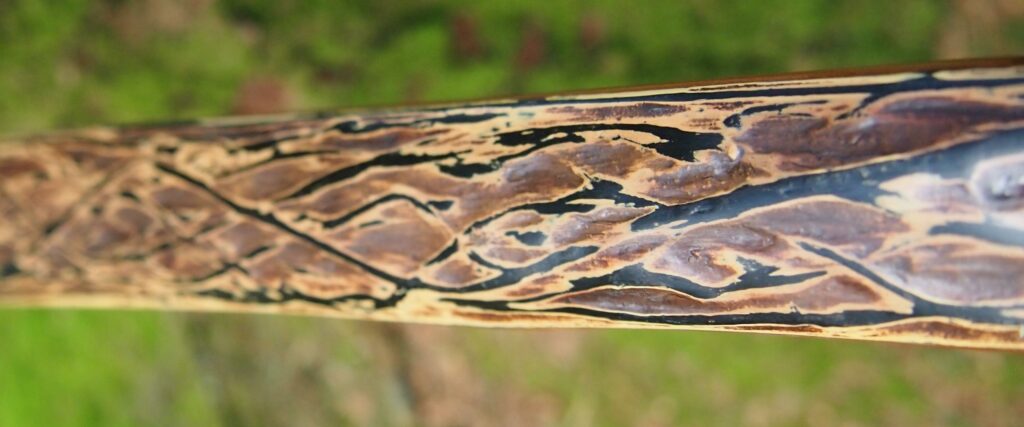

To finish and decorate I covered the bland sinew backing with two King Rat Snake skins embellished with some earth pigment edge work to make the transition from wood to snake skin pop. Tip overlays of red deer antler were fitted and the top nock was cut to receive a stringer since this bow was a little too heavy to safely string via push pull or step through method.

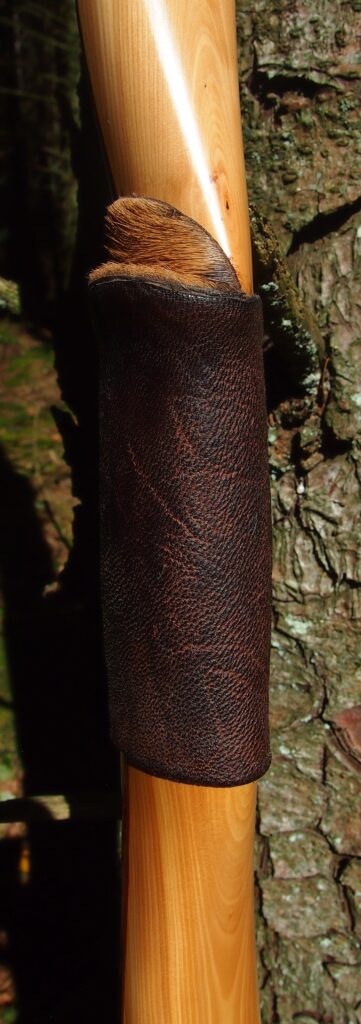

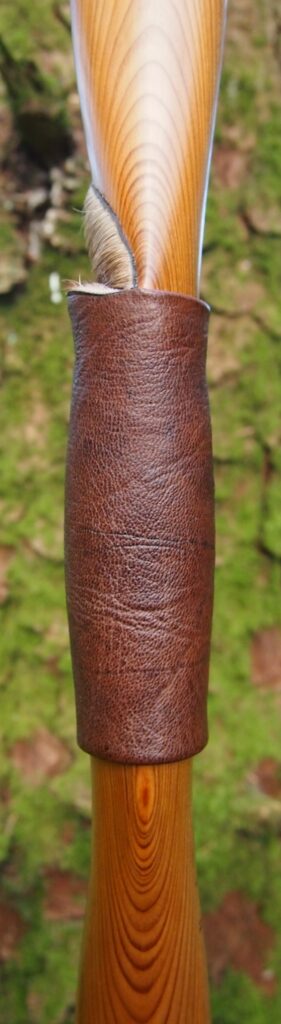

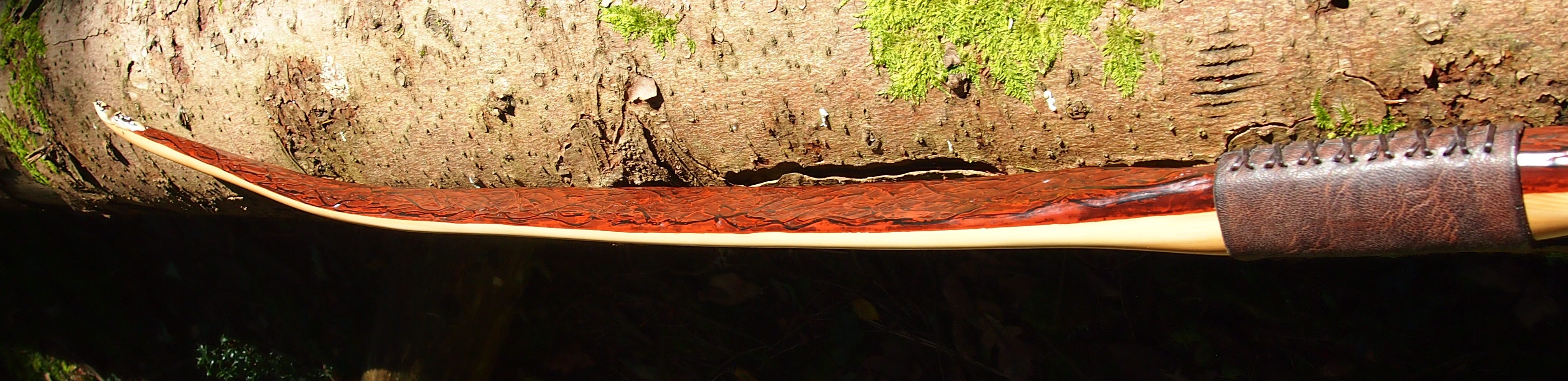

The handle covering/arrow pass is all wild red deer bark tanned leather and the finish is Danish oil buffed and polished with paste wax. For a string she was fitted with a custom built 12 strand B50 flemish twist string fitted with wild fox fur silencers to make this already quiet bow whisper quiet.

This bow is now available for sale and can be purchased in our Southmoor Bows Etsy shop found here:

Here are the details.

Draw Weight: 68lbs at 28”
Mass: 925 grams
Length NTN: 67” (asymmetrical limb layout)
Width: 1 11/16″” at widest part
Tips: last 6” semi static reflexed, 1/2” wide
Back: Crowned with undulations. : Pyramidal face profile
Belly Profile: Working limb sections rounded D shaped, transitioning at the tips to a ridged cross section.
Tiller: Eliptical. 1/4” positive
Brace height: 6″

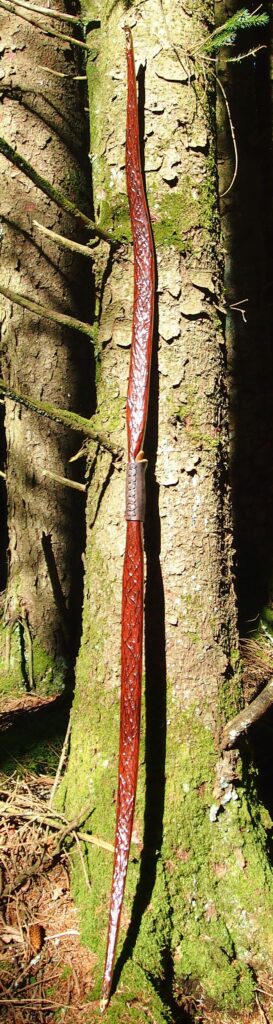

Hope you enjoy the photos and video below. Please feel free to comment or contact me with any questions!

Osage R&D sinew backed longbow 52#@27″ (bow no. 22)

Leave a Reply

Trying to get your hands on osage staves in the UK is hard these days, which is a real shame as osage is one of my favourite bow woods, second only to yew (due to sentimental value mainly). I bought this particular osage stave from Anthony Hickman over in Texas who has an Etsy shop which can be found here: HickmanCreationsShop – Etsy UK

Anthony sometimes has some nice osage staves in his shop for a reasonable price (by todays standards anyway!) And the stave which this bow was built from caught my eye as being worth the near $100 price tag. I could see from the photos from this staves shop listing that the growth ring thickness (and the composition of late wood to early wood) was very good, and that this stave carried no propeller twist or potentially problematic knots/splits etc.

At 62″ long, this stave was a little shorter than I’d ideally have liked, however I would struggle to get a longer stave shipped out to the UK without incurring a massive increase in shipping costs. So after a bit of consultation with Anthony, he managed to secure a not too absurd shipping price, so I decided to pull the trigger on this stave feeling pretty sure it would make for a very nice bow. And I’m glad I did!

So total cost including shipping, this stave came in just a whisker under $200, which is an awful lot of money for a hunk of timber, but unfortunately this is just the going rate nowadays for osage shipped to the UK!

The stave arrived on my door step in only 12 days which was bloody good these days. And after a thorough inspection of it, I was happy with what I’d received. Since the stave had the felling date written on the end grain, I knew that this stave was still fairly green. So I was a little worried that drying checks might have formed during transit from the states.

But I couldn’t see any signs of drying checks, other than what was obviously already present on the sapwood. And Anthony had made me aware of these sapwood cracks before I bought it. Since all the sap was destined to come off, the sapwood checking didn’t concern me at all, as more often than not, the cracks rarely ever continues deep into the heartwood.

Osage heartwood can check quite badly if dried too fast though, so I immediately painted the staves ends and the sapwood surface with TBiii, before putting it aside in my spare room to dry out for another 6 months. I kept weighing it each week so I could see when the weight loss would plateau and finally cease altogether. That way I would know when the stave was dry enough to start working on.

And by the early part of the summer of 2024, the weight lost had completely stopped, and I finally felt confident that I could begin sapwood removal and general roughing out, without running the risk of incurring drying checks from the rapid loss of any remaining moisture.

The sapwood came off nice and easy and chasing a decent latewood ring on the back was made simple by the fact that the first ring directly under the sapwood was perfect in it’s composition by being nice and thick, so I chased this faultless first ring and made that ring the back of the bow.

Now I had to think about design. This bow was destined to finish out at 60″ nock to nock, so being a bit on the short side, I needed to consider incorporating some design features to maximise draw length potential, without over stressing the limbs. Ideally this bow would go back to 27″, but I’d have to wait and see.

A 60″ bow drawn beyond 24″ will experience some “stacking” towards the end of the draw cycle unless some reflex is incorporated into the tips. So I planned to flick the tips on this stave, but not enough to be able to call it a recurve.

But flicking the tips alone would add at least 3-4″ of overall back set to this stave since the back of this stave was essentially dead straight. That much overall back set would definitely create the potential for overstressing the limbs of a bow this short, since the working sections of the limbs would only incorporate a max of 20-22″ of each limb.

So to counter the back set created by flicking the tips, I decided to deflex the 3″ fades either side of the 4″ stiff handle. Ordinarily I would have steamed the desired deflex into the centre of the handle, but I could see a couple of tiny drying checks on the belly side of the roughed out handle section, which would most likely have opened out considerably if I had attempted to steam bend the deflex into the handle.

The fades however appeared free of drying checks, so with the help of the heat gun, a shaping form, and a pile of G clamps, I pulled enough deflex into both fades to cancel out most (but not all) of the reflex, which I had now steamed into the last 8″ of the tips. After subtracting the deflex in the fades from the reflex in the tips, I was now left with around 1-2″ of overall back set. Much more realistic!

I opted for a simple slender pyramidal face profile on this bow, as this design works very well for woods like osage and yew. Since osage (like yew) is so strong in compression, I didn’t feel the need to go super wide with the limbs, so opted for limbs around 1 1/2″ wide at the widest section just outside of the fades, tapering down to 1/2″ tips (which I would leave static for the last 4″ in order to resist the reflex being pulled out of the tips over time with heavy use).

The handle section in the roughed out state was nice and deep, even once the bulk of the splintery rubbish had been removed from the belly side. So at 2″ thick, I decided to keep the handle a little deeper than I normally do. This would also enable me to retain nice deep fades too, so I fancied shaping them up to a nice crisp sharp ridge to create a nice aesthetic leading into the handle section.

In terms of character, this stave had one simple clean and featureless limb, and one limb featuring a small hollow knot (which I pegged), plus four small pin knots aranged in pairs in two different locations. This limb also had a small amount of lateral wave to the grain, which presented some nice edge contour to the face profile of this particular limb.

This limb also had the remnants of an old impact scar which must have occurred whilst the tree was still living. This old scar presented throughout the entire width and thickness of the stave, including the sapwood, and appeared as a pretty cool looking lighter coloured diagonal line of grain about 4mm wide running across and through the entire width and thickness of the outer third of the top limb.

This kind of impact injury to a living tree is usually as a result of another tree falling, or being felled into it. The tree heals rapidly by reinforcing the cells within the injured section with additional lignin and other strengthening compounds.

This healing process creates dense and interesting grain changes, which not only look nice, but are also denser and therefore stronger in both compression and tension than when compared to the surrounding uninjured wood. As such, these healed wound scars can be left within the working sections of a bow limb without any fear of weakness. In fact these sections are stronger than the rest of the limb.

As this limb clearly held all the character, I opted to make it the top limb which places most of the character closer to eye level. And since this bow was going to be asymmetrical, this more characterful limb was going to be 2″ longer than the more plain (but likely stronger overall) bottom limb. Since bottom limbs tend to take more stress over the years of shooting and stringing, they benefit from any additional design decisions which ensure optimal strength in this limb.

Since this bow was a little shorter than I’d have preferred, I decided to sinew back it. This would add significant durability to the bow, and it would also significantly reduce the amount of set which such a short bow would ordinarily take when being drawn back beyond 26″. I also consistently find that sinew backed bows retain their zip much better as the years roll by too, (so long as they are stored and cared for properly!)

So once the shape was roughed out and the back was suitably prepared, roughed up and sized ready for sinew backing, I added 3oz of processed wild English Red deer leg tendon sinew to the back of the stave with my own home produced hide glue made from cooked down red deer rawhide and sinew scraps. After sinew backing was complete, I then wrapping the stave up with bandages and put it away in a cool dry spot to cure for another 6 months.

By the beginning of this year (2025) the stave was dug out of hibernation for an inspection and I was pleased to see that the sinew was now fully cured. An additional 1″ of backset had been drawn into the stave as the sinew had shrunk down, so the overall backset was now almost back to where it was before I deflexed the fades.

This is very normal for sinew backed staves and I felt confident that after tillering, this extra 1″ of back set would likely fall out leaving something close to a more suitable1-2″ backset. And sure enough, after tillering to 27″, the stave was now back to around 2″ overall backset. Perfect!

After a good bit of early shooting in and a little fine tuning of the tiller, the bow seemed to settle into and hold the 1/8″ positive tiller really well. She was turning out to be a nice quiet snappy shooter, and a very enjoyable bow to accompany me about the woods stump shooting for a few weeks. not only did she not kick at all, but pound for pound, I recon this bow is possibly one of the fastest shooting bows I’d ever made.

Now to finish her up I decided to cut an arrow shelf into the handle as I personally love an arrow shelf and knew it would enhance the pointability of this bow significantly. And for the tips I went for wild red deer antler overlays.

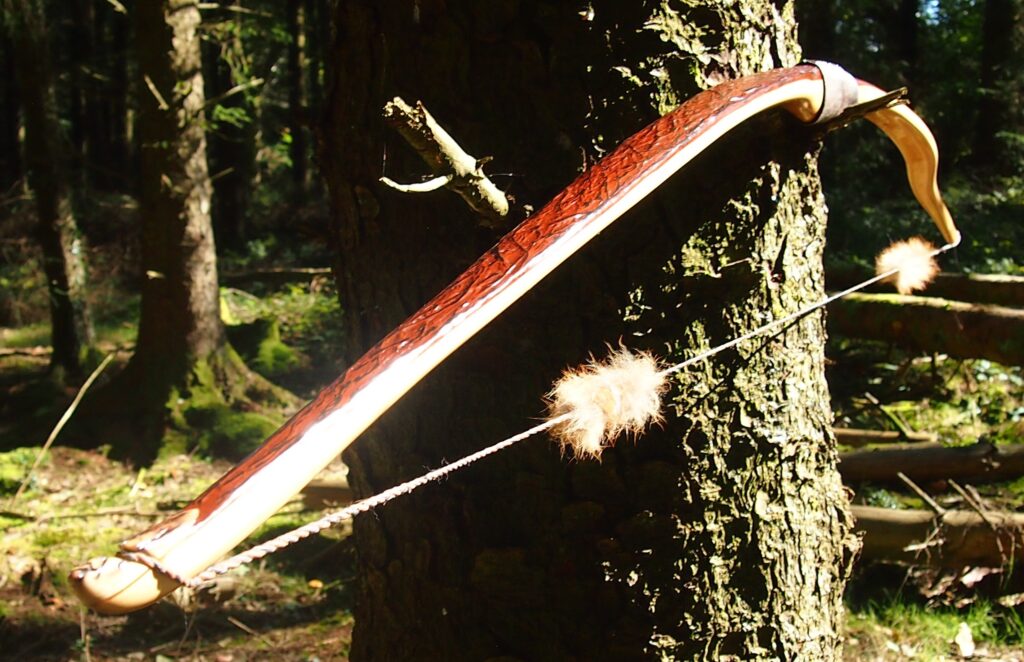

Whilst the sinew backing on this bow provided great functionality, it did look a bit plain, so I decided to cover up the rather bland looking sinew with a couple of nice dark brown/purple cobra skins I’d had lying around for ages. The edges of the skins where then sealed and decorated with white dots made from ground deer bone dust mixed with glue and applied with a sharpened stick. I find that this edge work really helps to make the skins pop.

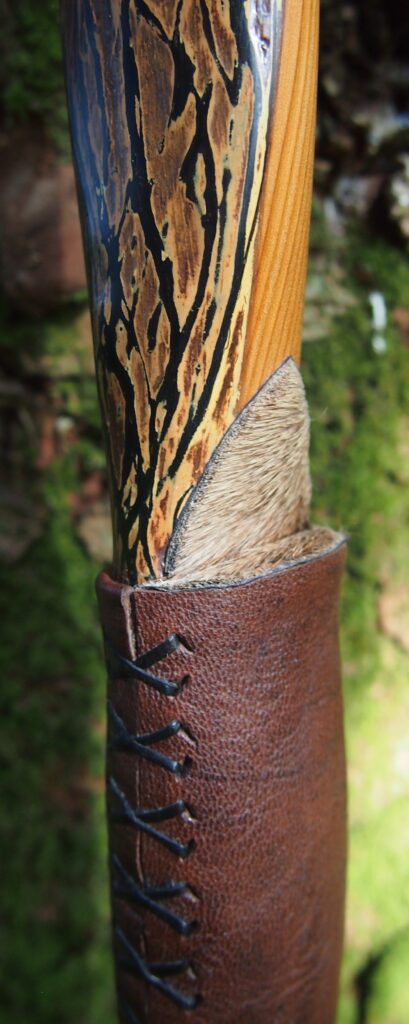

For the handle I ended up contouring the back of the grip to create a very slight pistol grip with the dip pulled up nice and tight to the arrow shelf so as to keep the arrow as close as possible to the top of the index finger of the bow hand. I really find that this little detail allows me to shoot a bow instinctively with considerably more accuracy through enhanced pointability.

After sanding I sealed her up with 8 coats of danish oil. Then the final extra fine sand and pumice polish was finished off with my favourite home constructed linseed oil/bees wax paste wax polish, setting her up for a nice deep satin look to compliment those snake skins and the wonderful golden yellow of the osage heartwood.

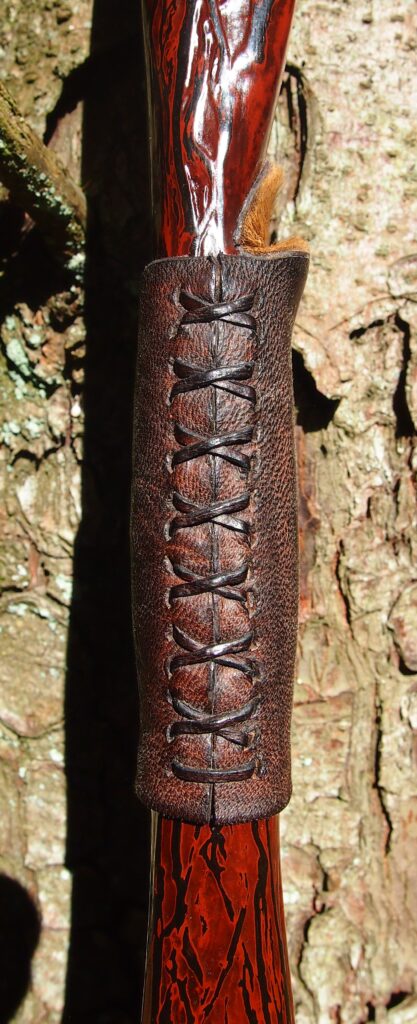

For the grip I found a nice rustic piece of home produced bark tanned red deer leather laced up with some roe deer leather thong. And for the arrow pass/shelf I fitted a couple of nice pieces of natural coloured hair on bark tanned red deer shin leather. Which is a better looking wild and rustic version of the commercially available “calf hair” leather the archery suppliers sell!

Fitted with a custom built ultra low diameter fast flight sting, I put a dozen or so 50# 550grain doug fir arrows over the chrono to see how she performed. The chrono recorded an average arrow speed of 168 FPS, which is about what I’d expected given how spicy she felt when first shooting her it. Easily capable of being classified as a “hunting bow” and very accurate and enjoyable to shoot split fingers and instinctive.

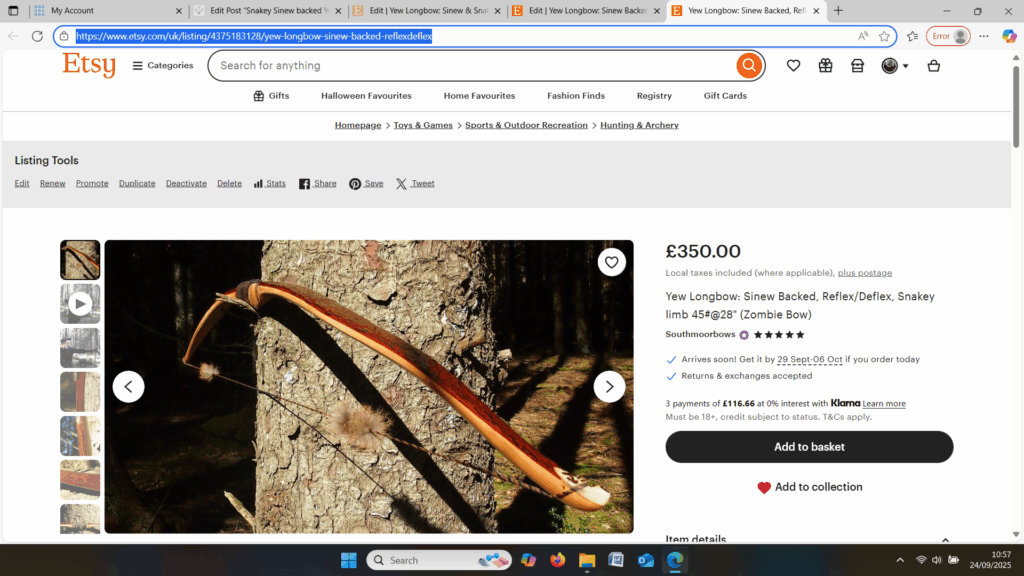

This bow is now available to purchase through the Southmoor Bows Etsy Shop, listing available here:

If you have any questions, feel free to contact me either here, or through the shop!

Here are her stats, hope you like the photos and video!

Draw Weight: 52lbs at 27”
Mass: 650 grams
Length NTN: 60” (asymmetrical limb layout)
Width: 1 7/16″” at widest part
Tips: last 4” static reflexed, 1/2” wide
Back: Crowned with undulations. : Pyramidal face profile
Belly Profile: Working limb sections rounded D shaped, transitioning at the tips to a ridged cross section.
Tiller: Eliptical. 1/8” positive
Brace height: 5.5″

Yew Sinew Backed R&D Primitive for Ben 30#@22″ (Bow no: 21)

Leave a Reply

About a year ago I came across a short piece of round yew log which I’d kept with the intention of using as a billet. It measured 52″ long and about 3″ in diameter and was really nice and clean. After a bit of contemplation I wondered if I could get away with splitting it straight down the middle and getting two short staves out of it. So I thought I’d give splitting it in half a go.

For once it worked! Normally yew never plays ball when trying to split it, so ordinarily I would have taken it to the table saw, but in this instance I couldn’t be bothered, so I just set to it with an axe and wedges instead! Well low and behold it split just perfect! And no propeller twist evident either!

So now I had two nice clean straight, short and relatively thin staves. Should I splice them together and make a light weight full sized bow? Or, should I finally get around to making my kids a pair of proper character primitives, like I’d been promising them for ages. Of course, the kids won!! So this bow is the first of two bows which I made back in 2024. This one in particular is for my 10 year old son, and the other bow (which also came out great) I’ll blog about another time.

My son Ben has been wanting a heavier bow for some time. He’s really grown out of his first bow, a junior recurve which I bought for him when he was only 5. At 15#@ 20″, his recurve is now quite under weight for him and he’s probably drawing more like 22″ now anyway. So in the interest of keeping him excited about archery, I planned on making him something primitive and characterful, with enough punch to get him enthusiastic about flinging arrows again. And hopefully, if it didnt come out too light, it would be a bow that he can properly grow into over the next few years.

I wanted this bow to be a surprise for him, but at the same time, I also wanted to be sure that I built him something which he’d like the appearance and feel of. So in the interests of getting it right first time, I asked him to go through my collection of primitive bows and point out which style of primitive bow he liked the most. He chose the R&D sinew backed elm bow which I blogged about here:

He told me that he liked the shape (R&D pyramidal) and that he loved the rustic sinew backing effect that I’d created with that particular bow. He also made it clear that he wanted antler tip overlays, an arrow shelf cutting into a static handle, and a rustic leather grip. So now I knew what he liked, I set to work on one of the two yew staves with a plan to build a similar looking bow to the one he’d picked out of my collection, only made from yew and way more suited to a small, but rapidly growing young man!

After roughing the stave out to something close to final dimensions, I spent a bit of time heating a nice even Reflex/Deflex side profile into it using a mixture of steam and dry heat applied whilst using a shaping form I built a while back specifically for kids bows.

The sapwood was only about 1/4 – 5/16″ in thickness so I just left the back of the stave as it was directly under the bark. Ben had already made it clear that he wanted his bow to be sinew backed “like the Indians did”, so after I had the bows shape and profile locked in, I sinew backed it with red deer leg tendon sinew applied with TBIII, and parked it in a dry, cool place to cure for 6 months.

After waiting through the entire summer and autumn of 2024, the stave was finally ready to dig out of slumber so I cut some temporary nocks into and got it on the tillering tree. Within a couple of hours I had the tiller pretty much done but was a little concerned the weight was still too heavy. And at 40lbs at 18″, I was right!

By reducing the limb width a bit I managed to shift about 5lbs of draw weight without moving the tiller off, but I still had at least another 8lbs to get rid of before I could close the gap on the target draw weight of around 30Lbs at 22″. So I carefully scraped away at both limbs checking constantly for tiller change until I reached around 30lbs at 20″

Happy that the rest would probably fall off through shooting in and final sanding, I shaped the handle, cut in an arrow shelf and took it out for a spin in the woods with a hand full of 350 grain 35# stumping arrows which I’d built to accompany the bow when I gift it to Ben. They were a little stiff so I ended up keeping them a tad longer than I normally would so as Ben’s draw length increased with his age, his arrows should still be safe for him to use. Hopefully I’d just reduce the point weight as his draw length increased to keep them flying true.

I had a wail of a time over the next few day trying to shoot a 22″ draw without an anchor, and have to say, I actually got half decent at snap shooting from the hip like the Comanche did in the archery videos Ben’s been watching lately on YouTube ! After a couple hundred arrow and a good bit of fun the tiller seemed to be holding just fine, well for split fingers at least, (pinch grip not really being my thing!) So I decided to move on to finishing touches.

Tip overlays from red deer antler went on easy enough and once I had them shaped up, I could envisage going really fine with the tips so as to create a really sharp but elegant look to what is after all a rather petite bow. And of course by minimising the mass in the tips, I would also help to ensure that this little bow was maximising energy transfer to those nice light arrows.

Whilst I had the rasp out thinning down the tip tappers, I also saw fit to do a bit more handle shaping which brought the grip into a nice comfortable shape. Ben is a bit finicky about bow grips and hates bulky handles! This handle now had a slim profile and a slightly dished out belly side to it, which felt really natural in the hand. I figured he’d like that. I certainly did!

Ben had said that he wanted the same textured sinew effect on his bow that I’d done with the Elm primitive he’d selected from my bow collection. So Instead of filling and smoothing out the rough sinew on the back like I often do before adding snake skins etc, I simply gave it a light sand to knock off the snaggy raised ends of of the sinew stands. Then after sanding the whole bow, I masked off the belly and edges of the bow, and painted the whole sinew backing jet black with a paint made up of shelac and my local Bideblack earth pigment.

As a bit of a edge decoration I painted a row of red earth pigment dots along both edges of the sinew backing to give a buffer to where the black met the light coloured sapwood along the edge. And after writing on the draw weight/length and adding my bowyer’s motive, I sealed her up with Danish oil, topped off after polishing with my favourite paste wax.

For the grip I fitted a nice rustic natural bark tanned piece of roe deer leather sticked up with a thinner piece of the same material cut into thin leather lace. The cut leather edges of the grip and lace where then “aged” with Iron chloride to create that natural patina look that old worn leather gets on its edges. A coat of the same paste wax I used on the wood was applied to the leather grip and polished up to give a nice low gloss/satin water proof finish. The arrow shelf/pass was then treated to a couple of pieces of bark tanned “hair on” red deer shin leather to add a nice rustic, primitive look whilst maintaining functionality and durability.

Ben was absolutely over the moon when I presented the bow to him. Of course he wanted to take it out right away and shoot it, but since it was dark outside, I managed to get him to wait until the next day! He had a great time zipping his arrows off at stumps situated off in the next county, and proceeded to loose two of his new arrows in the process! Doh!! But never the less he had a blast, and has shot his new bow many times since with a newly rejuvenated enthusiasm for archery!

Despite Ben not quite yet being able to get the bow all the way back to his normal 22″ draw length, he is definitely getting it back to around 19-20″ now more often than not. So he’s probably drawing something like 25 ish lbs from his new bow at the moment. Which is still a lot more than his usual 15lbs! And he could immediately see how much more speed and power his new bow had in comparison to his little old recurve.

Anyway, I hope you like the photos below. If you like the look of this bow and think that your child might like something similar built for them, feel free to get in touch as I will consider commissions for unique pieces of work like Ben’s bow. Either message me through the contact page on this website or contact me through the Southmoor Bows Etsy shop and we can discuss designs/materials/prices etc.

Here are the stats for Ben’s bow. Keep an eye out for the sister bow to this one, which I’ll post about very shortly! Until then, may your arrows fly true!!

Design: Reflex Deflex, Symetrical Pyramidal longbow

Draw Weight: 30lbs at 22″
Mass: 440 grams
Length NTN: 49”
Width: 1 3/16” at widest part
Tips: 4” static 3/8” wide
Back: Crowned with sinew. Pyramidal face profile
Belly Profile: Working limb sections D shaped, transitioning at the tips to ridged cross section.
Tiller: Elliptical. 1/8” positive
Brace height: 5″

Sinew Backed Primitive Elm R&D Longbow 48# @ 27″(bow: 20)

It’s been ages since I made myself a bow. So when I uncovered a forgotten Elm stave which I’d had up in the barn rafters for a couple of years, I rather fancied turning it into my next favourite stumping primitive.

Whilst the stave was fairly clean, it did have a knarly looking end section which looked more trouble than worth the effort to work around. So I opted to cut this end off. This only left me with 61″ to play with. That’s not much for a white wood bow.

A white wood bow this short, intended to be drawn back to my 26″ draw length, would stack unless the tips were flicked. But flicking the tips on an otherwise short and straight stave would probably overstress the limbs.

As the added reflex was only to reduce stack, not add speed, I opted to deflex the handle section/fades so that it would cancel out the added stress from the recurve induced throughout both outer thirds. This is something that I tend to do routinely now, as even just a whisper of R&D makes for a much smoother, less stacky draw.

And as this white wood bow was always going to be a tad on the short side of ideal, to make sure that there would be no risk of his bow blowing up on me in a few years time, I decided to sinew back it with 3oz of Red Deer leg tendon sinew. Whilst it’s always a hassle and a massive faff to sinew back a bow, in addition to the extra durability sinew backing brings, it don’t half add some resistance to set, not to mention a fair bit of extra zip!

The stain on the wood is iron chloride, and the light dark effect on the sinew was achieved by painting the rough sinew backing jet black using my local “bideblack” earth pigment mixed with TBIII, which was then sanded along all the high spots to reveal the underlying natural sinew colour standing proud above the black sinew valley bottoms.

Edge work was done with the same black paint and the white dots are deer leg bone dust mixed with glue. I personally really like this kind of edging as it really makes the face profile pop.

Tip overlays are wild Red deer antler, and the handle/ arrow pass is covered with my home produced traditional spruce bark tanned wild roe deer leather. The wood was finished and sealed with shellac.

Given the sinew component, this bow took a full year to build from start to finish, but I’m really happy with how she came out. She is fast and light in the hand, and produces zero hand shock. Quiet as a feather and very pointable too. Whilst I’ve yet to put more than a couple of hundred arrows through her, she is already rapidly becoming one of my favourite woodland bows.

Here are the stats:

Draw Weight: 48lbs at 26”
Mass: 660 grams
Length NTN: 59.5”
Width: 1 3/4” at widest part
Tips: 5” semi static 3/8” wide at the nocks.
Back: Moderately crowned with a pyramidal face profile.
Belly Profile: Working limb sections flat with rounded corners, transitioning at the tips to ridged shaped cross section.
Tiller: Elliptical. 1/4” positive
Brace height: 5 1/2″

Here are the photos/video.

Sinew Backed Yew Primitive 46# @ 27″ (bow no: 19)

Since gaining a bit of a reputation locally for being the guy who makes “Character bows”, I’ve been “gifted” rather a lot of “character staves”! And not wanting to appear ungrateful, I’ve become prone to accepting these staves, rather than politely declining the “generous” offer of yet more firewood!

Actually, once in a while, some of these typically low diameter branch staves don’t look too bad, (at least upon initial inspection) and the bow featured in this post was built from one such branch stave which was donated to me in 2022.

Despite the low diameter and general knottiness of this particular branch stave, there was one face which looked quite nice and could make for a sound back. So other than a couple of branch whirls to deal with on the belly side, I could easily envisage making a simple but effective primitive bow from this stave. So in the spring of 2024 I set to work on it.

Roughing out was straight forward enough and I was pleased to get past all the pith without running low on heart wood material. I decided to keep the face profile fairly narrow so as to minimise the amount of sapwood which was curling around the edges towards the belly due to the low diameter and high crown on the back.

The stave was fairly straight other than a tiny amount of deflex right in the middle where I’d lay out a stiff handle with fades. I decided to leave this deflex alone since I only had 62″ of overall length to work with, and really hoped to get 27″ of draw length out of this bow. I figured that lightly flicked tips could possibly work since the deflex in the handle would help cushion the extra strain that any reflex might place on the relatively short working sections of the limbs. Flicking the tips would help reduce any stack experienced which might result from the short length.

A stiff 4″ handle with 3″ fades, and 5″ stiff tips would reduce the overall working sections of both limbs down to around 20″, which isn’t a great deal to support the load that a 27″ draw would place on a bow as short as this one. So after roughing out and steaming the tips into a light reflex, I decided to sinew back this stave and leave her to cure out over the summer of 2024.

By early autumn the sinew backing appeared to be thoroughly cured and a little bit of overall reflex had been drawn into the stave as the sinew had shrunk down tight. This often happens when enough sinew is used, which is why I typically apply my sinew backings by weight to ensure enough (but not too much) sinew is applied.

I find that a total of 3 ounces of sinew (an ounce and a half of dry processed sinew per limb) is the perfect amount for a bow in the 58 – 64″ range. 3 oz is plenty enough sinew to add significant extra power and resistance to set, but not so much sinew that the added weight of the sinew starts to add power robbing mass to the limbs.

I find that more than 3oz of sinew on a bow this length crosses the point of diminishing returns, and the extra weight the additional sinew gives to the limbs can actually start to decrease arrow speed and create a fair bit of limb vibration too. This vibration post string release is typically felt as an uncomfortable form of hand shock. So when it comes to sinew backing a bow, more is not necessarily better!

So 3oz of dry sinew is about perfect, so long as the bulk of its distribution is along the working sections of the limbs, as opposed to the handle section or the last 6″ of the tips, which will not be improved one bit by the added weight of a full thickness layer of sinew. In fact the tips really only want as thin a layer of sinew as is possible. Just enough to cover the visible surface of the back. Enough to add structural integrity but not weight.

The stave was brought into shape and a rounded D shaped belly was chosen so as to get as much sap wood off the belly corners as possible. This allowed for the retention of as much heart wood as possible and resulted in an overall ratio of around 50/50 sapwood/heartwood. Which was pretty good for a low diameter branch stave.

Three of the small knots presenting on the belly were a bit weak looking so I opted to dig them out and fill them with a mixture of epoxy and yew dust so as to add back some strength whilst retaining as best a natural look as possible.

Before putting the long string on for the first few pulls the stave held about 2″ of overall reflex, but I new that a fair bit of that overall reflex would disappear once the tillering got well underway. And as expected, by the time 26″ had been reached the overall reflex had reduced to about an inch. My expectation was for it to drop another inch by the time full draw was reached and the bow had been properly shot in, and my expectation was spot on.

So after a thorough shooting in period, the overall reflex/deflex reduce to about neutral, which was ideal for a bow which was going to end up only 60″ nock to nock. The light reflex in the tips had held it’s shape, even with their relatively low diameter, and the 1/4″ positive tiller had stayed true throughout the shooting in period.

46# at 27″ was about right for a stave of this nature and she was pleasant to shoot too. So to finish her up I fitted her up with a pair of red deer antler tip overlays. To decorate the back I fitted a nice King Rat snake skin which I had squirreled away. As well as looking quite cool, I also like that snake skins are pretty water resistant and afford a sinew backing quite a bit of extra protection from water/humidity ingress, which is always a bonus in a humid country like ours!

This snake skin wasn’t long enough to run tip to tip so I left the tips bare to show off the sinew backing. The transition from the snake skin to the sinew at the tips was wrapped with deer back strap sinew to tidy up the termination of the snake skin. The snake skin and the sinew wrappings were then edged with a black paint made from my local black earth pigment (Bideblack) mixed with hide glue. And the cream coloured dots added to the black painted boarder were made from mixing hide glue with deer bone dust.

The bow was finish and sealed thoroughly with 8 coats of danish oil made satin in appearance through a final pumice polish buffed down with wax paste. I opted to cover the slightly contoured handle with a nice piece of my home bark tanned red deer leather in a nice natural red tan colour, laced up with some leather lace cut from a roe deer hide I bark tanned last year.

The arrow pass is a piece of red deer shin leather which I tanned with some of the hair still on. It’s a bit like a rustic primitive version of the calves hair leather pieces you can buy from archery shops, only cooler!

I really enjoyed building this bow and found her to be really pleasurable to shoot. The chrono consistently recorded speeds of around 150ft/sec from a 400 grain arrow which is quite reasonable for a character branch stave.

The balanced tiller and flicked low mass tips helped mitigate any hand shock and the slightly contoured handle made for a nice comfortable grip. I can imagine this bow giving someone many years of enjoyable and reliable shooting so will be offering this bow for sale in my Southmoor Bows Etsy shop, the listing can be found here:

Specifics are as follows:
Draw Weight: 46lbs at 27”
Mass: 725 grams
Length NTN: 60”
Width: 1 3/8” at widest part
Tips: 5” working 3/8” wide at the nocks.
Back: Moderately crowned with undulations with a pyramidal face profile.
Belly Profile: Working limb sections D shaped, transitioning at the tips to ridged shaped cross section.
Tiller: Elliptical. 1/8” positive
Brace height: 5 1/2″

Here she is, hope you enjoy!

Sinew Backed Ladies R&D Yew Primitive (38#@26″) Bow no. 18

This bow was built from a short, thin but nice straight English yew stave which had been propped up in the corner of the barn for at least three years. It was too short to make a bow fit for a 28″ draw, and it was also a bit too narrow to produce a draw weight much above 30lbs.

After a bit of thought I decided to see if I could turn it into a short ladies or teens bow. The stave was pretty straight and without much wiggle. The sapwood was about 10mm thick so I reduced it down to about 6mm. The growth rings were a couple of mm thick so staying true to one growth ring on the back was quite easy.

Since the stave was so short, I wanted to reflex the outer thirds of both limbs in order to reduce any stack experienced at full draw. In an attempt to avoid over stressing the bow with too much overall reflex, I also wanted to deflex the handle as a means to minimise the risk of the limbs taking on excessive set. This was a fairly short stave after all.

After roughing out, the R&D shape was achieved by using a mixture of both steam and the heat gun to persuade the stave to conform to the shape of one of my wooden R&D forms. After the desired shape was achieved, the stave was sinew backed using wild Red Deer leg sinew and hide glue.

After being put away to cure out for 6 months, I finally got around to digging the stave back out for tillering. As is often the case with pre shaped staves, this one tillered out very quick and came off the tillering tree roughed out at around 42# at 26″.

After a good bit of shooting in, and a quick retiller to let off the top limb a bit more, she was finally pulling around 38# at full draw. And after a bit more shooting in and with the tiller now holding fast, I was ready to think about decorations, overlays and general finishing.

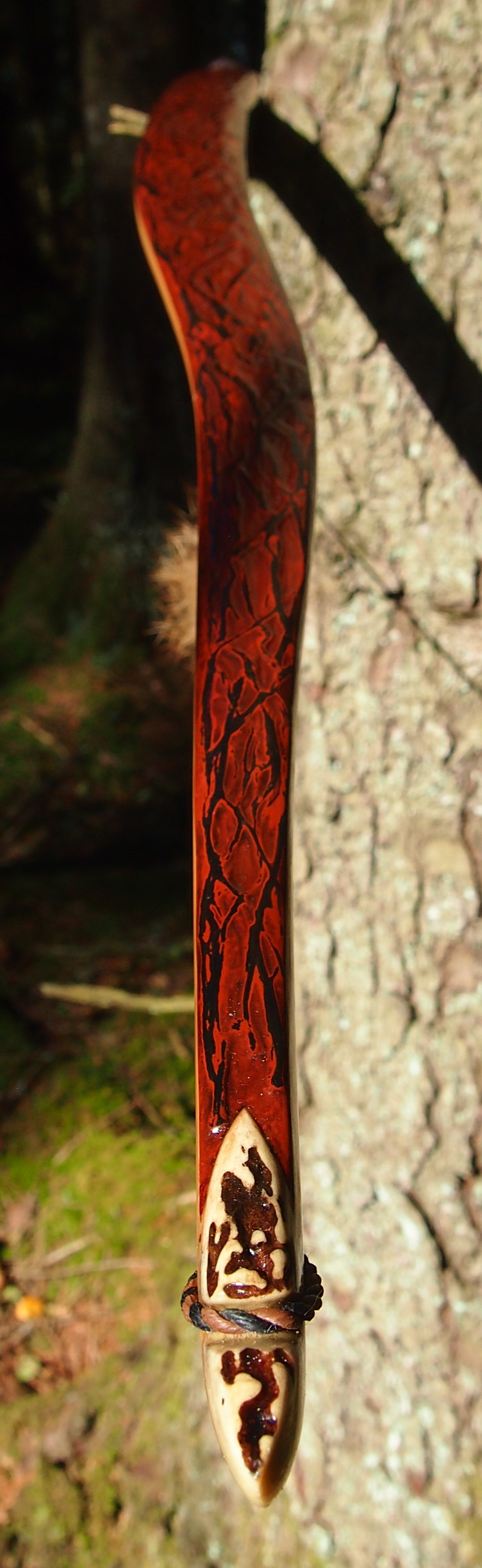

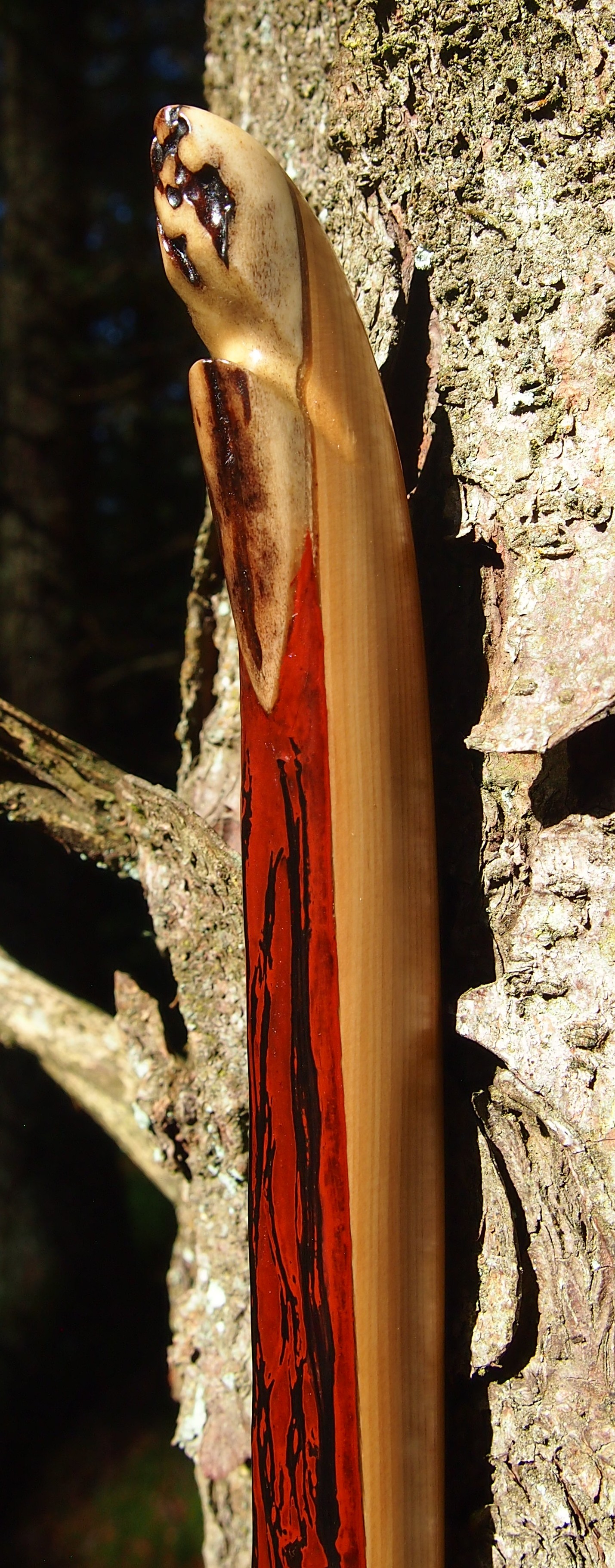

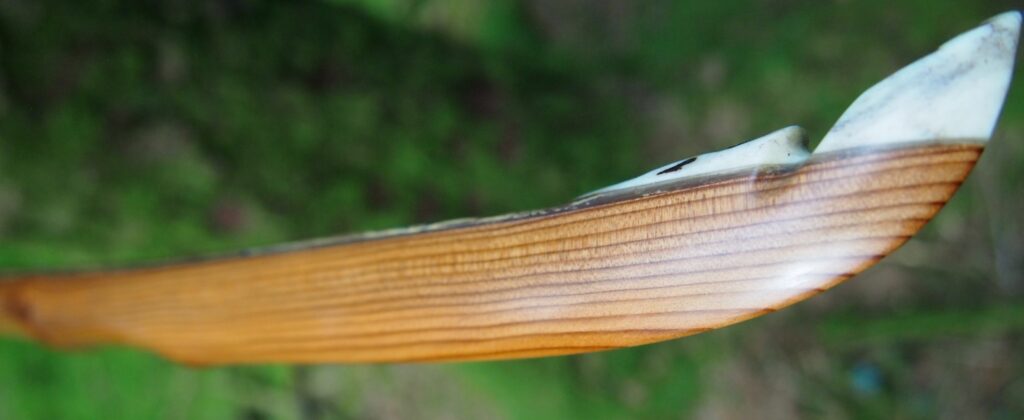

For tip overlays I laminated a couple of pieces of deer leg bone onto some buffalo horn. As a decorative backing, I chose to use a couple of nice wild sea bass skins which came from a cracking lure caught open reef fish which I’d been very fortunate to catch on the north Devon coast last summer (photo of the fish at the bottom). The reef bass often take on a nice dark colour around this part of the world and I’d been itching to use some as bow backing material for ages, so was keen to make this my first attempt.

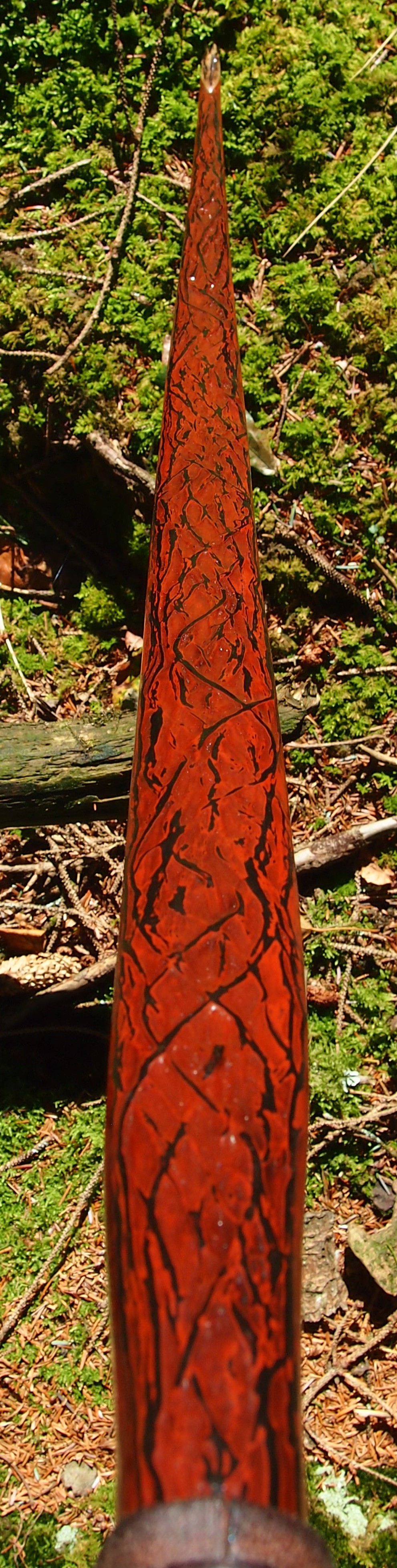

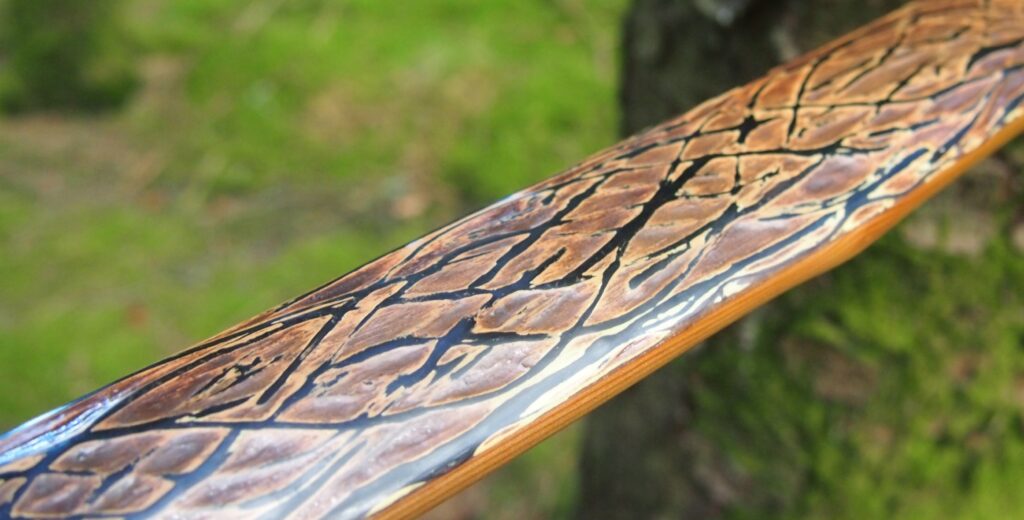

The skins were fitted with TBiii and were edged with a black paint made from a mixture of hide glue and a locally produced earth pigment called “Bideblack”, which I’d collected from the cliffs directly behind the reef beach where the bass was caught. The white dots where made from mixing deer bone dust with hide glue and were applied with a pointed stick.

The handle cover is my own home made spruce bark tanned wild red deer leather, died with some Iron Chloride which I’d earlier made from wire wool mixed with vinegar. The Iron chloride reacts with the tannins bound within bark tanned leather, turning the leather dark black.

The lacing is done with my own bark tanned roe deer hide, and the arrow shelf/pass is bark tanned red deer shin leather cut from an edge piece which still had some hair on it. After staining the leather black I thought the natural golden brown colour of the hair stood out great, giving a pretty cool unique look. Deer shin leather makes for great arrow pass/shelf material as it is very dense. This makes it super tough and durable whilst still being nice and thin.

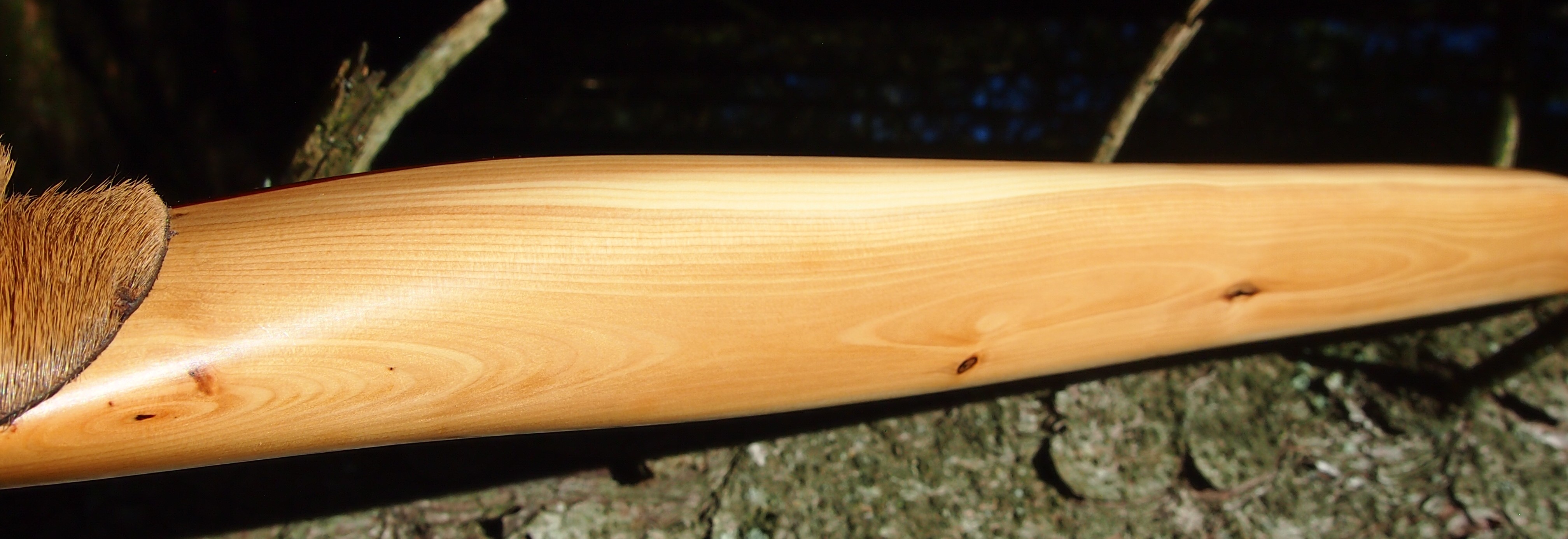

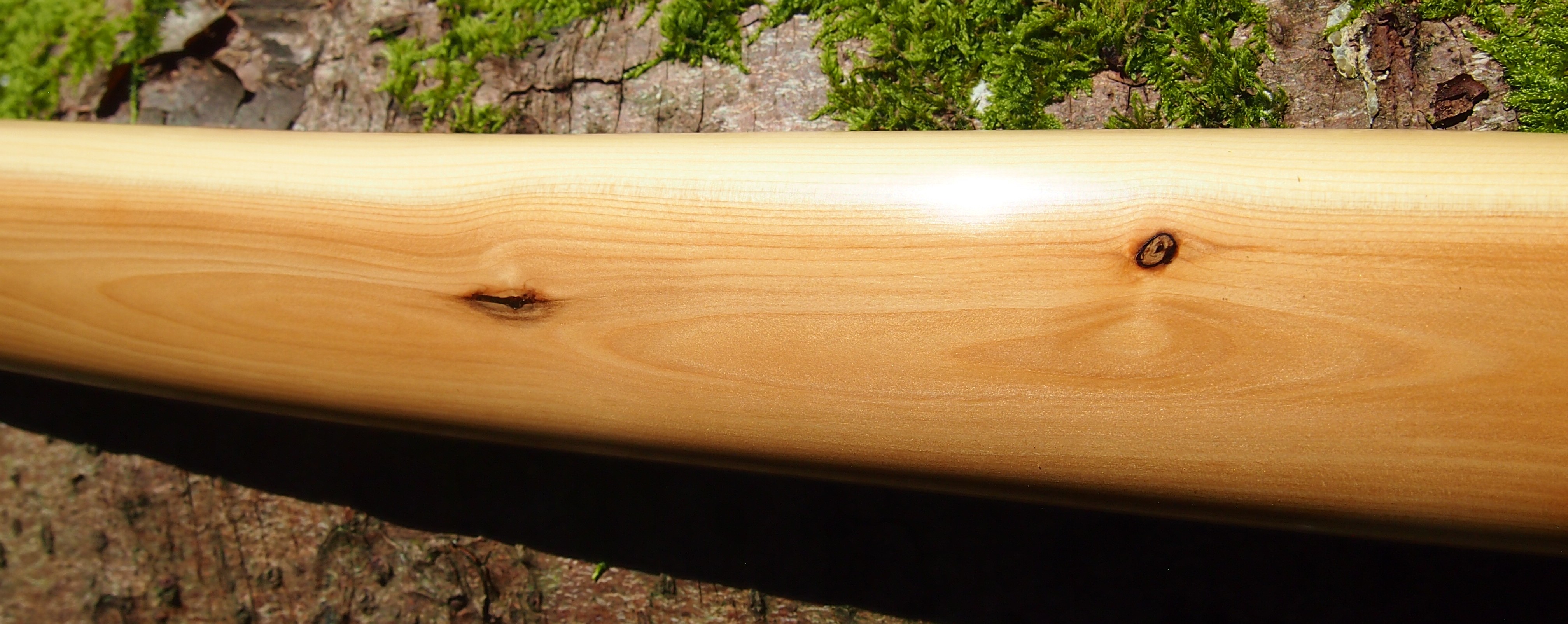

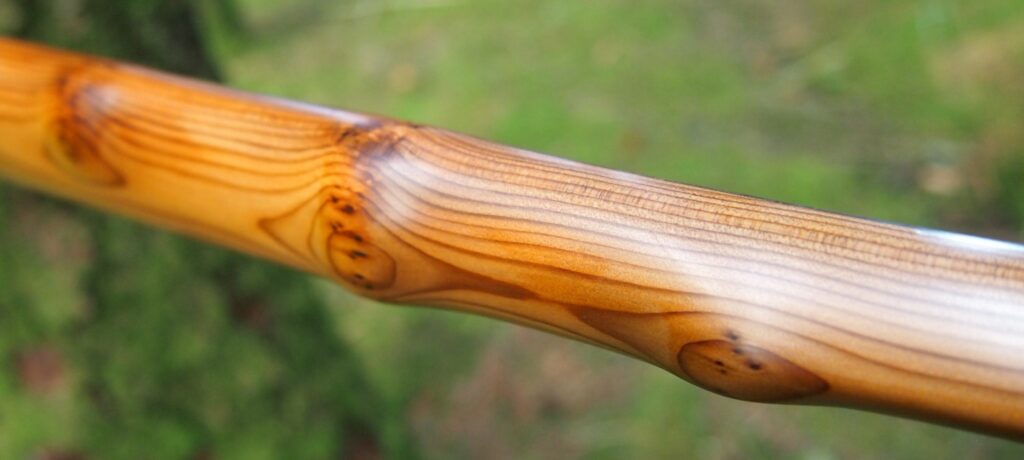

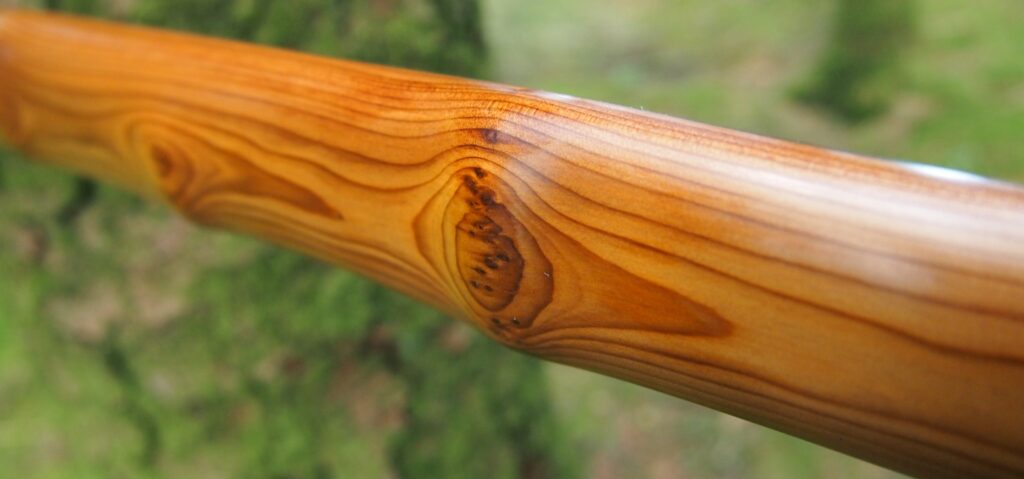

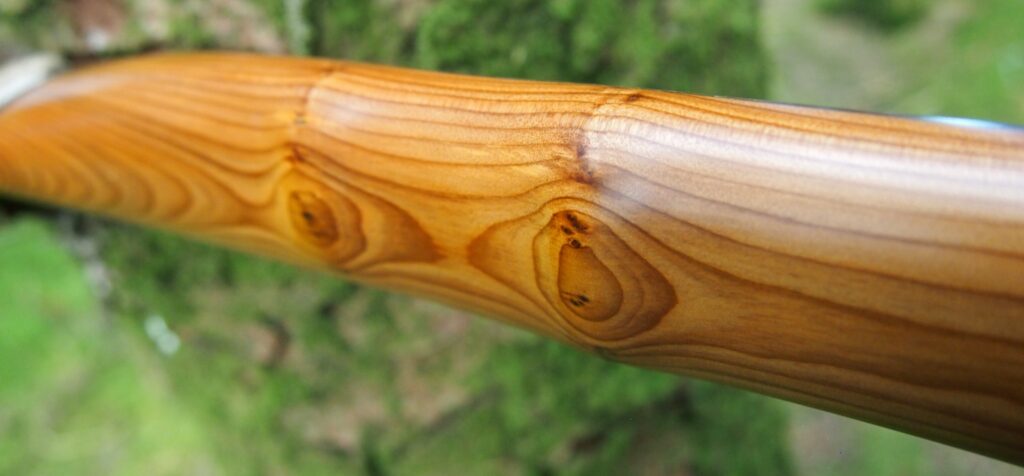

As you’ll see from the photos, there were three knots in this stave, I wanted to incorporate all three knots into the bow’s character so I deliberately left them nice and thick and wide to avoid any likelihood of them producing a weakness, or an unsightly pinch.

Two of the knots were unsound and needed to be dug out and refilled, so rather than dowel them like most do, I decided to improve their aesthetic appeal by filling them both full of with a mixture or epoxy and natural/stained yew dust. This gave both knots significant extra strength, as well as a much more natural knot like appearance. I think they look far better that the customary heartwood dowel and glue approach which most bowyers use to fill knot voids.

After sanding buffing and burnishing she was treated to 8 coats of danish oil and a buffing down with fine pumice and oil. Then a final application of paste wax to leave a nice satin finish.

I was really pleased with how this one turned out. She’s a smooth drawing, whisper quite little thing and the sinew helps send a 380 grain arrow out there at an impressive 145ft/sec. Not bad for a R&D primitive with only a 26″ draw!

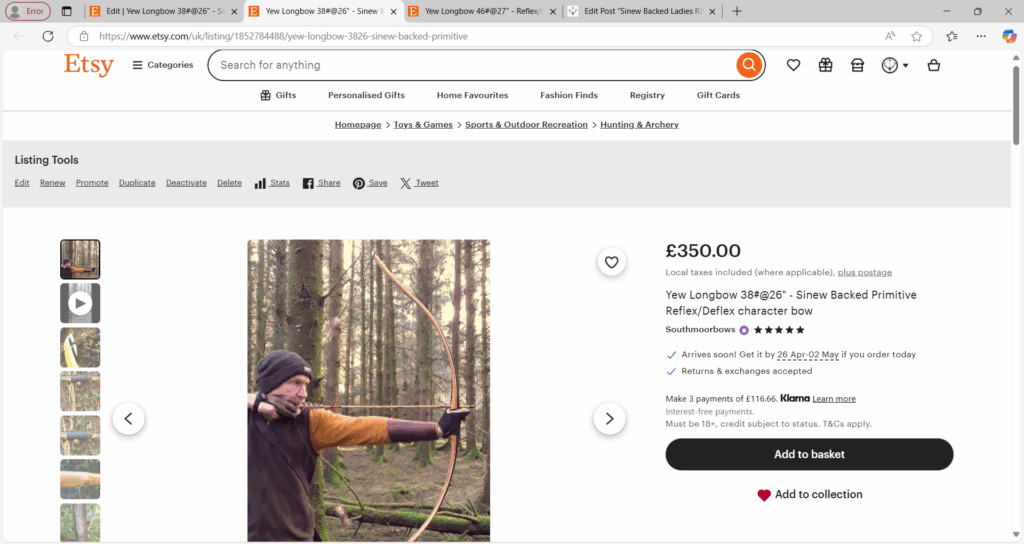

This bow is currently available to purchase and can be found in the Southmoor Bows Etsy shop listed here:

Specifics are as follows:
Draw Weight: 38lbs at 26”
Mass: 532 grams
Length NTN: 55”
Width: 1 1/4” at widest part
Tips: 5” static 3/8” wide at the nocks.
Back: Moderately crowned with undulations with a pyramidal face profile.
Belly Profile: Working limb sections D shaped, transitioning at the tips to ridged shaped cross section.
Tiller: Eliptical. 1/8” positive
Brace height: 5″

Hope you like her!

OLYMPUS DIGITAL CAMERA
OLYMPUS DIGITAL CAMERA
This was the Bass from which I used the skins in the build. The black sooty looking pigment on the shale rocks behind is what I used mixed with hide glue to make the black paint which edged the skins.

Sinew Backed Yew Holmegaard 70#@28″ (bow no. 17)

Back in the spring I was contacted by Ross, a friend of Matt who had purchased the character yew flatty I blogged about here: Primitive Character Yew Flat bow 52#@28” (Bow no. 14) – Southmoor Bows which Matt had bought through the Southmoor Bows ETSY shop. Ross really liked Matt’s bow, so he got in touch with me to ask if I could build him something with a primitive vibe, but a bit heavier. Ross came from a ELB background and was accustomed to shooting bows in the 65lb plus bracket.

After a bit of discussion we settled on a plan. I had in my possession a rather nice and character laden Yew branch sucker stave, which I could easily envisage being turned into a Holmegaard type longbow. This stave measured 71″ so was both long/wide and clean enough to produce a heavier draw weight bow built in a classic Holmegaard/pyramidal/flatbow type design, as opposed to something more like an ELB, which is a widely accepted design, recognised as being well suited to bows intended for higher draw weights.

Ross and I had settled on a target draw weight of somewhere around the 65-75lb mark, so I had to now figure out how I could optimise the bows design and features to encompass the heavier than average draw weight, as well as all the wonderful characteristics of this particular stave.

Rather than go full on Holmegaard and get all anal about precise authentic dimensions, I decided to let the stave dictate the overal profile. And to ensure long term durability I opted to incorporate a robust application of sinew backing to minimise both potential set, and vulnerability to wear and tear over time.

So my plan was to build a straight limbed pyramidal profiled long bow with semi lever like needles for tips, and a completely static handle section. The bow would end up 70″ nock to nock and have 8″ static tips. These none bending tips, combined with a 4.5″ stiff handle with 3″ long flowing fades, would leave me with just about 43.5″ of working limbs. Since this wasn’t a massive amount of moving wood, I decided to lay the bow out asymmetrically so as to give the bottom limb a bit more support over the long term.

The intention was to maintain the original crowned shape of the back, whilst adopting a rounded D shaped belly cross section throughout the fades and working sections of the limbs. The tips would transition in cross section from D shaped to ridged to reduce mass whilst remaining static. The handle would remain deep and relatively straight with no shelf as the chap who asked me to build this bow was a fan of shooting off the knuckle.

The stave had no overall natural reflex or deflex, but the 6 sets of branch whirls which were evenly distributed between both limbs did have some contour, thus giving the false impression of deflex where the grain flowed around the knot whirls. These flowing lines would need to be incorporated into the final profile of the bow as my intension was not to interfere with the natural shape of the staves side profile. Fortunately, this particular stave was completely absent of any twist or snake, so other than working around the knotty branch whirls, laying out the intended profile was, for once, a doddle!

The Heartwood/sapwood ration was about right too, with this stave having no more than 1/4″ of sapwood under the bark. Subsequently, I only had to get the bark off in order to expose what would end up being the back of the bow directly below the sinew. This meant that the final composition of heartwood/sapwood would end up being around a 70/30 ratio. Perfect!

So after roughing out the face profile and reducing the belly to facilitate better drying, I set about the arduous process of applying 3.5 oz of wild red deer leg sinew, applied to the back of the stave with my own home made sinew glue cooked up from a bunch of sinew scraps and tendon sheathing material. After applying all the sinew and given the glue plenty of time to set up, I wrapped her in gauze and left her to dry and cure out completely for 6 months. And what a long wait that was!!

The sinew backing came out great, so after what felt like an eternity, I fitted a pair of stag horn tip overlays and got a long string on her for a few short pulls. All looked good and after a bit of tweaking here and there, she was soon at brace and being pulled to 26″

As usual, I like to spend a fair bit of time shooting in a bow before attempting to get the last couple of inches of tiller finalised. So I spent a week putting her through her paces so that she could settle in and reveal any tiller correction that might be necessary before calling the job done. For once this bow didn’t budge off tiller, and had settled in to a nice 1/4″ positive tiller, which felt very well ballanced at full draw.

Final touches included a stag horn inlay for an arrow pass, and a gorgeous piece of my home produced bark tanned red deer leather as a handle cover, all sewn up with lace cut from some flank leather from the same hide. To seal her up I saturated the gorgeous grain of the wood with several applications of raw tung oil, caped off with half a dozen coats of Danish oil to fully protect her from dirt and moisture. Last but not least, the glossy Danish oil finish was sanded smooth and polished with fine pumice powder to leave her with a beautiful satin finish which sheds water and really shows off the grain.

I really enjoyed building this bow and will definitely build another “Holmegaard” like this one just as soon as I get my hands on another suitable stave. She’s a little on the heavy side for me personally, but I did enjoy the speed and power that was greater than what I’m used to. The loud whack she delivered when sending my stumping arrows on their way never got boring! She turned out to be quite nippy across the chrono too by consistently sending 550 grain arrows over the sensors at between165-175Fps, which, I’m sure you’ll agree, isn’t too shabby for a simple English yew branch stave!

Specifics are as follows:
Draw Weight: 70lbs at 28”
Mass: 850 grams
Length NTN: 70”
Width: 1 7/8″ at widest part
Tips: 8” static 1/2” wide
Back: Crowned with undulations. : Pyramidal face profile
Belly Profile: Working limb sections D shaped, transitioning at the tips from semi circular, into ridge shaped cross section.
Tiller: Eliptical. 1/4” positive
Brace height: 6″

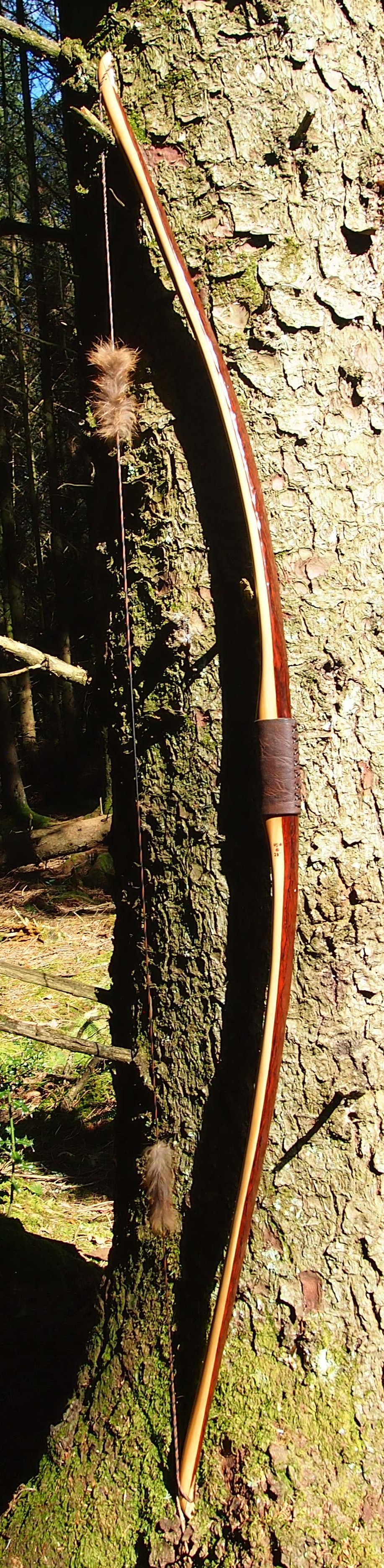

Anyway, here she is. Hope you like her!

Spring 2025 Edit: Ross has kindly sent me a couple of video clips of him shooting his bow which I’ve added at the end. So far he’s been sending his roving arrows out to 200yards! Phew!!

Native inspired Yew HLD R&D Longbow 46#@28″ (bow no 16)

This bow started out life as a fairly short branch stave at 62 inches, but I had to lop off another couple inches due to deep drying checks in both ends. This left me with around 58 inches to play with, which isn’t really enough to produce a bow intended to reach a typical 28″ draw length, so right off the bat I planned on being content with a 26″ final draw length, if she survived the plan!

The stave had a small amount of natural reflex at the middle of the handle section, and natural deflex in what would be the inner third of the top limb, so rather than fighting with that, I opted to add the same amount of deflex to the inner third of the bottom limb to balance the natural shape of the stave.

Since the stave was quite short, I also opted to flick the tips to counter the deflex a bit, plus, since she would end up quite short, the recurved tips would significantly reduce any likelihood of uncomfortable stack at the end of the draw. Whilst shaping the bottom limb I also took the opportunity to improve the overall string alignment by tweaking the outer third of the bottom limb in order to make the alignment of the tip section straighter, which in turn pulled the string back in line with the centre of the handle.

I always seem to find that deflex reflex profiled bows tiller a lot quicker and easier than straight limbed bows for some reason, and this bow was tillering out nicely. That was until I uncovered a significant and unavoidable delamination in one of the heartwood growth rings in the top limb. The ring was so deep that the only way I was going to clear the delamination was by digging out most of the heartwood. Since most of the heartwood was going to have to leave, I was left with no choice but to opt for a mild hollow limb design as all I was left with was mostly high crowned sapwood to build from. Fortunately I’d not removed any sapwood at this point as i didn’t feel the need to chase a ring, so I still felt confident that I had enough wood to make a bow.

Personally I prefer a yew heartwood/sapwood ratio of around at least 50/50, but this bow was going to end up more like 40/60. Many bowyers would condemn such a ratio, but in my experience, for flatbows at least, an almost entirely sapwood yew bow will still make for a snappy shooting and durable bow if tillered well. And this bow did not disappoint, despite the loss of so much heartwood.

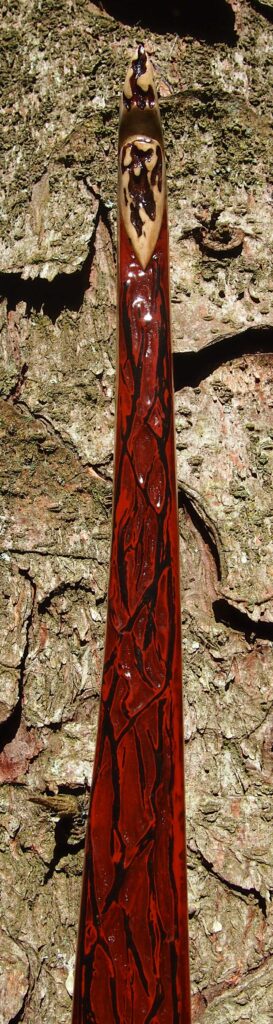

In order to emphasis what little heartwood I was left with, I decided to fume this stave in ammonia, which really added some character by giving the wood a unique, almost antique like look which only yew can bring about. I’ll definitely be fuming more yew bows in the future as the results I’ve experienced so far have been fantastic!

This stave had a couple of potentially problematic knots in the top limb which needed to be delt with before putting any significate torque on them, so after drilling the soft rotten material out, I decided to plug them both with yew heartwood, as there was quite a cavity left after all the muck had been removed.

After getting to brace height I decided to rawhide back her with wild red deer rawhide for extra durability, which left me with quite a canvass to decorate after tillering was completed. Since I had nothing in the way of snake skins to back her with, I opted to use a native design which I’d seen in the Bowyers Bible Vol 1. So after shooting her in I mixed up some of my local Devonian earth pigments with my own hide glue and set about painting the backing in a pattern inspired by the “Hupa” Western Indian tribes recorded from the Northern California/Southern Oregon region.

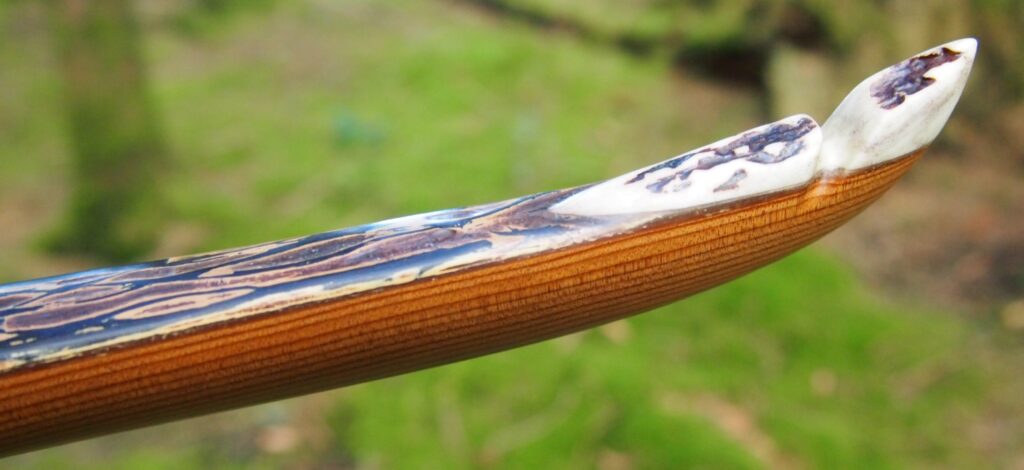

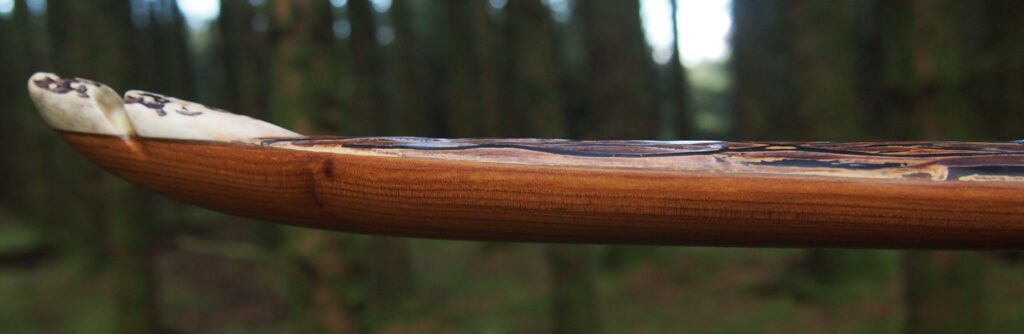

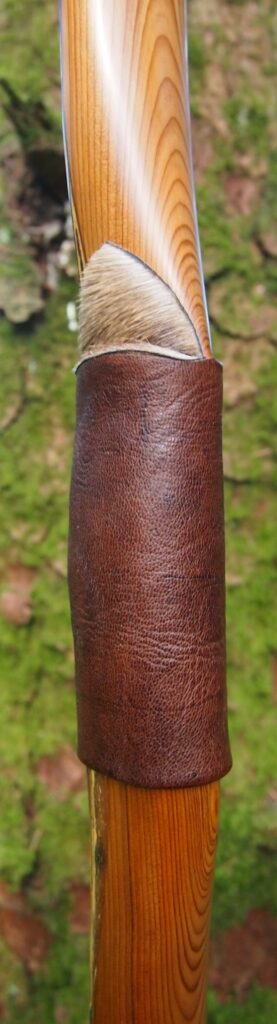

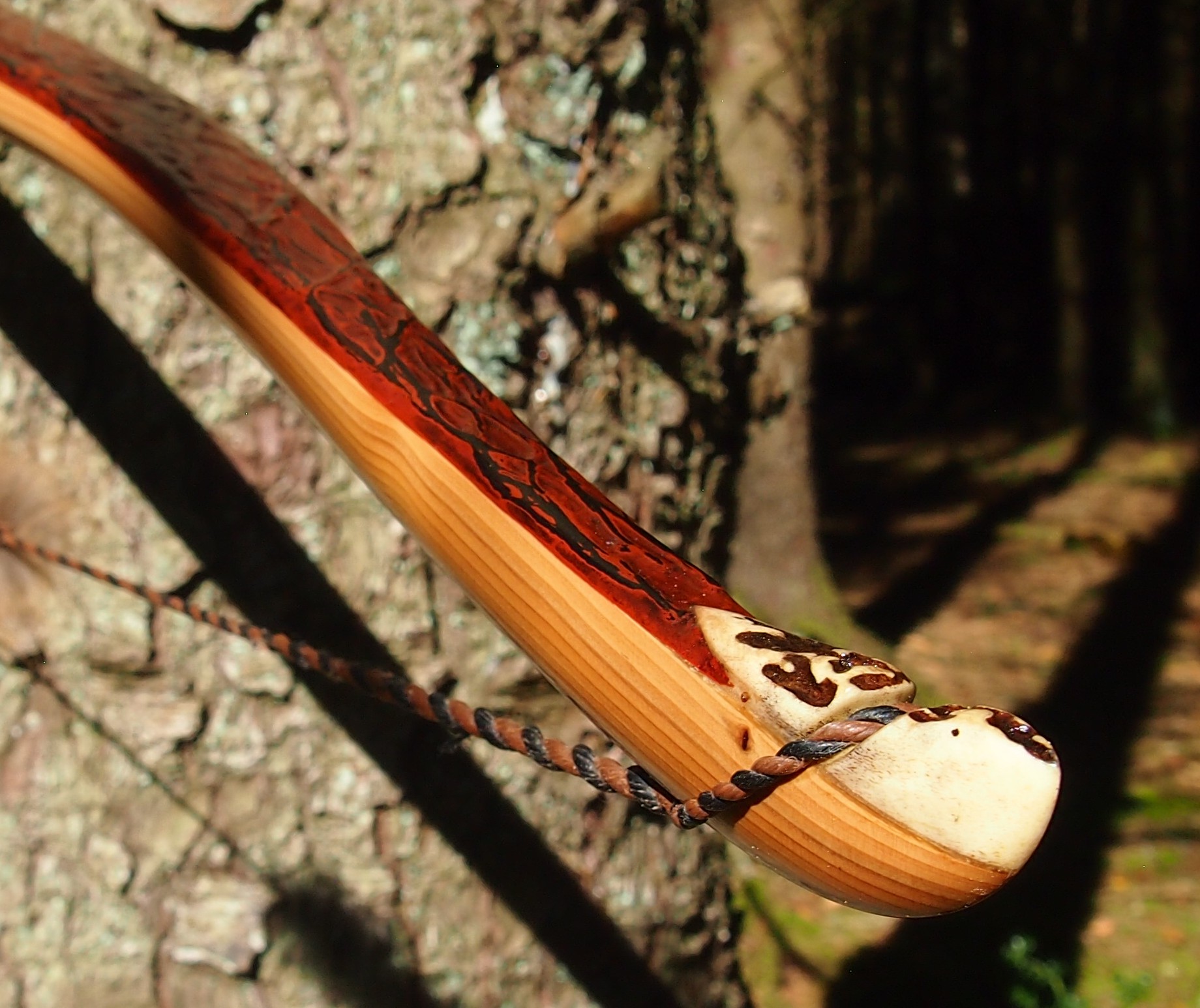

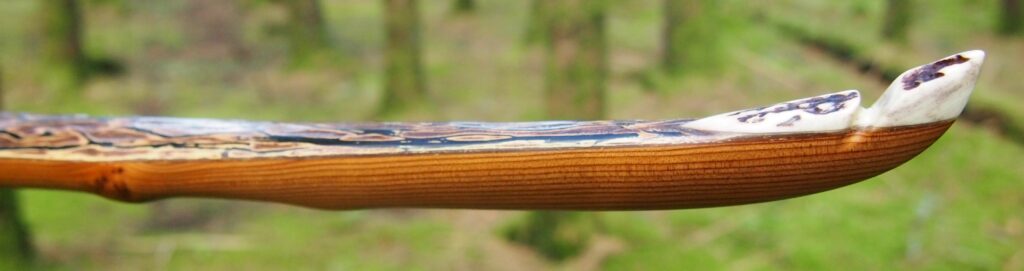

Tip overlays and arrow passes made from red deer antler were fitted, and the handle cover was made from a gorgeous piece of Bark tanned wild red deer leather, which I tanned myself in sitka spruce bark that came from the very same group of trees which are in the background to the photos bellow. The leather grip is also sewn up with red deer leather lacing.

After a lot of shooting in and a little re tillering to balance things out post settling in, I was really pleased with the end result. She’s super pointable, snappy, light in the hand and performs without any hand shock at all. And she turned out to be a nippy little thing, consistently hitting speeds around the 150FPs mark shooting a 500 Grain arrow. She would make for a great hunting bow, especially in a blind as she’s so manoeuvrable due to being so short.

She is now listed in my Southmoor Bows Etsy shop and can be found here:

Specifics are as follows:
Draw Weight: 46lbs at 26”
Mass: 630 grams
Length NTN: 57”
Width: 2” at widest part
Tips: 4” semi static 3/8” wide
Back: Crowned with undulations. : Pyramidal face profile
Belly Profile: Working limb sections undulating to mirror back, transitioning at the tips to D shaped/ridge cross section.
Tiller: Aggressive eliptical. 1/8” positive
Brace height: 5.5″

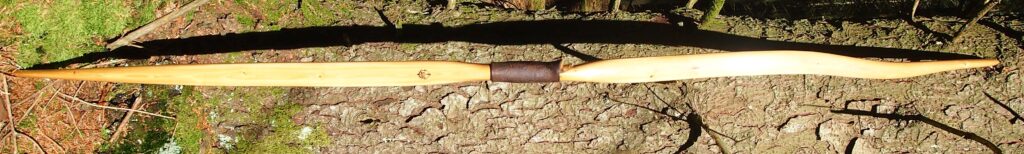

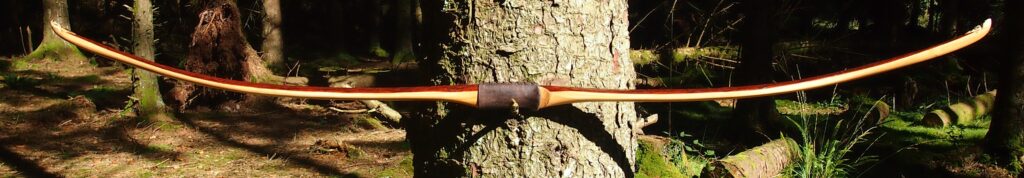

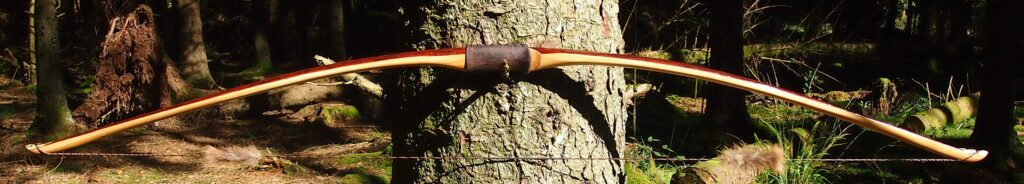

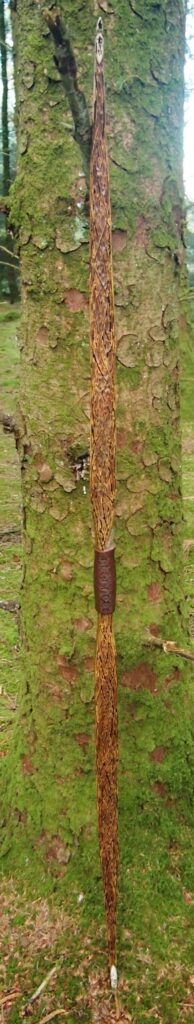

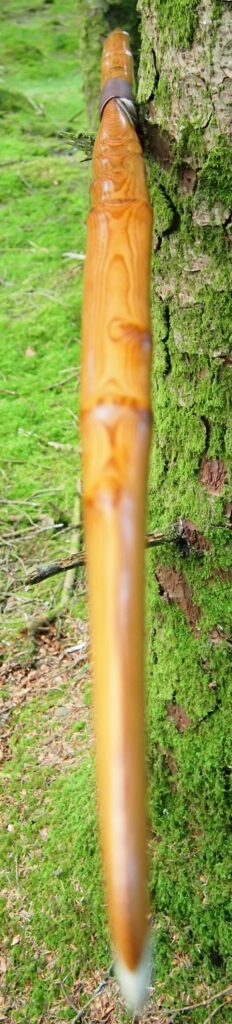

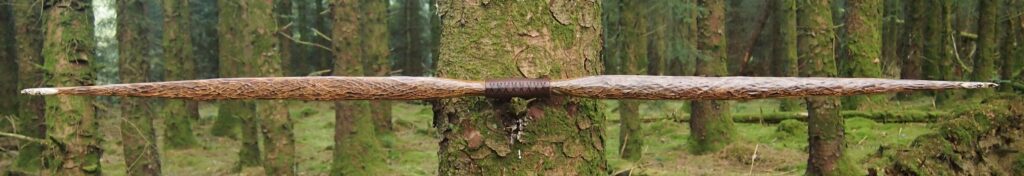

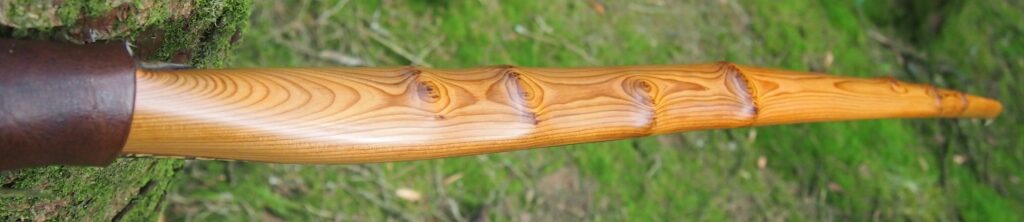

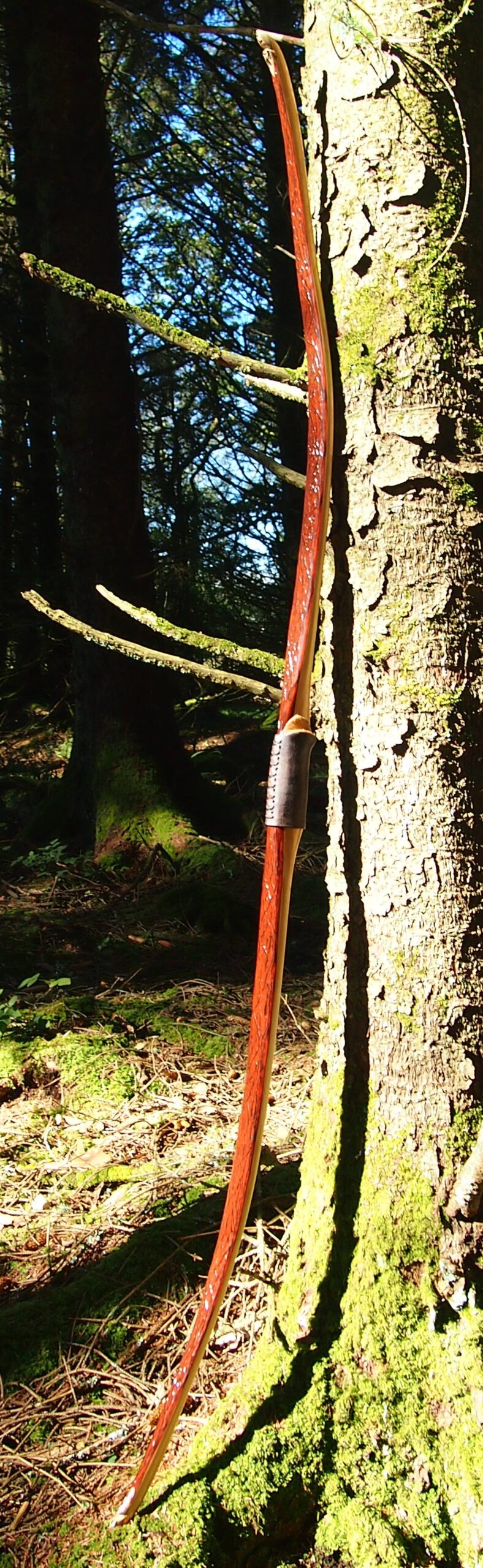

Here she is:

Primitive Hawthorn Flat bow 52#@28″ (Bow No. 15)

A good friend of mine does a fair bit of hedge laying through the winter months and has been kind enough to supply me with several nice bow staves over the years. Most of these staves have been Elm, Ash and Hazel. One bow wood which I’ve been badgering him about for years is Hawthorn. So it came as a nice surprise when he walked me out to his shed to show me what he’d accumulated for me over the winter. Because sat in the rafters was a reasonably clean, straight and fairly untwisted 70” long Hawthorn stave!

When I say “clean and straight” I mean by Hawthorn standards. The best of hawthorn would still deter all but the most insane of bowyers (like me). And by “untwisted”, what I actually mean is propeller twist of less than 45 degrees, because around here at least, if you can find a Hawthorn stave with less than 45 degrees of twist then boy have you done good!!

I like to split my bow wood logs into staves, and I could have done that with this hawthorn log as it was about 5” in diameter. Trouble is, every time I try this with hawthorn, it splits out into a spiral of doom, terminating with a grain run out which you can absolutely guarantee will run across the proportion of the log which would have made for the back of your bow. I was not going to take that risk with this precious log!

Hawthorn is nice bow wood. Let me explain what I mean by such a statement as there will be seasoned bowyers reading this that will screw their faces up at the very thought of using such a problem laden wood for bows. Hawthorn, with its twist, knots, interlocking grain and undulating back topography will certainly challenge the best of us. But with a bit of patience, and the right design, Hawthorn can make for a powerful, hard hitting bow which will rival many yew bows in terms of performance.

Hawthorn, like most UK thorn species, is more flexible and springy than many other white woods. Most whitewoods in my experience are quite stiff. Hawthorn however is one of only a few whitewoods which has about the right balance between tension and compression strength. Most white woods, at least here in the UK, are very strong in tension, but they lack the compression strength necessary to withstand the crushing forces which the bellies of whitewood bows routinely experience. This creates a challenge for bowyers and requires consideration to be given to bow design in order to mitigate the problems of using such tension strong woods.

Hawthorn is a bit different. Hawthorn has a much more balanced distribution of tension and compression strength. In fact I’d estimate the balance between tension and compression to be pretty close to even. With all that said, correct bow design is still important when using hawthorn, but not as important as when using woods like Ash and Hazel. Leave too much back wood working on a compression weak white wood like hazel, or worst still, not enough belly wood working, and you will experience fretting on the belly for sure. And that’s even with a perfectly tillered bow.

For this reason I typically reduce the amount of back wood which is truly working on most whitewood bows. This can be done a couple of ways. An example would be to use a stave with a naturally moderate to high crown. A high crown ensures that only the central section of the back is working and therefore coming under tension. Another way to balance the tension and compression forces on a tension strong wood could be to keep the entire width of the belly nice and flat so that all of the belly is working against the compression forces brought about by the tension strong back. Heat treating the bellies of compression weak timbers can also help to strengthen the compressive qualities of woods with weak bellies. But go careful with heat treating. Cook it for too long and you can make belly wood even weaker.

But none of this is necessary with Hawthorn. On a hawthorn flat bow at least, you can have just as much back wood as belly wood working and you will likely not experience chrysaling. Or at least you won’t as long as you have a well designed and tillered stick without any hinges of course!.

Heat treating the bellies of Hawthorn bows is unnecessary in my experience. Whilst heat treating woods like Ash, Elm and Hazel will undoubtedly make these woods behave more springy, Hawthorn is plenty springy enough just as it comes.

A conversation about hawthorn as a bow wood wouldn’t be complete without touching upon the down sides however. And one of the main down sides to Hawthorn is its tendency to check quite badly during the seasoning process. For this reason I work all of my Hawthorn staves down to as close to final dimensions as I dare. And I do this as soon after felling as is humanly possible.

Normally, if I’ve felled a Hawthorn stave myself, I’ll be planning to get the bark off and work it down to within a couple of millimetres of final dimensions the same day as I felled it. That way I’ll be sure to have removed the bulk of the staves pith therefore significantly reducing the very real risk of the stave splitting out from the bark right to the central pith of the log. That kind of splitting happens very quickly with Hawthorn. And you can bet your bottom dollar that if a drying check does emerge, it will be right through the face which you intend to use as the back of your bow!

The Hawthorn log which my mate had kindly stashed away for me had indeed split and badly. But since the whole log was relatively clean of knots, I was fortunately able to find a face which did not contain one of the deep drying splits.

Once home I set to the log with my axe and within half an hour I had a roughed out stave without any major nightmares to contend with. I was very careful to follow the grain with the axe as the natural tendency of the grain was to spiral. Fortunately the amount of spiral in the log was manageable and ended up being about 30 degrees of propeller twist.

Since this stave was still wearing its bark, the next thing I needed to do was get the bark off. Since the log was cut in the middle of winter, the bark was stuck on good and proper, so I took the draw knife to the bark with a view to leaving a trace of cambium behind to serve as some level of protection whilst the stave was being worked on.

Once the bark was off, I clamped the stave to a flat form and parked the clamped stave in a warm spot for a couple of weeks. The stave was still very green at this point so I was hoping to use the opportunity to clamp out some of the twist on the form whilst the stave was still able to lose a significant proportion of its heavy moisture content.

When the stave finally came off the form, it had actually gained a fraction of reflex. Some of the twist had come out but about 10 degrees remained and would have to be heated out at a later date. For now though, I needed to get the moisture content down to as low as I could get it, which normally works out around 6 – 8%.

I have a room in my house which is both warm and has low humidity. I built a bow rack in this room so that I can store all of my wooden bows, and all of my drying roughed out bow staves, without the risk of them gaining moisture or getting bent out of tiller. The rack enables me to keep all of my bows lying horizontally, whilst being supported at only two points situated approximately mid limb. This ensures that the distribution of gravitational force is equal across my bows whilst they are not in use.

The wall against which the bows supports are fixed is the back of my chimney breast, so when the wood burning stove is in use, the wall gets nice and warm. This increases the ambient temperature within the whole room, but especially around the immediate vicinity of the bow rack.

This slow and steady maintenance of warmth, combined with a dehumidifier situated in the middle of the property, really speeds up the drying process of green staves. Especially during the winter months, which is when I like to cut most of my bow staves. This arrangement also keeps all of my finished bows at below 8% moisture content all year round. So with this set up in mind, within just a few weeks I was able to get this stave down to a point where it was not losing any more weight.

So once the weight loss had completely ceased, I set about fixing the 10 degrees of remaining propeller twist. Some dry heat applied to the fades and limb tips and some strategic application of force in the right direction got the twist out easily. Another benefit of using Hawthorn as bow wood is that it bends quite easily with both dry and steam heat.

In fact, as long as a piece of hawthorn is clear of knots, some pretty aggressive bends can be put into Hawthorn using steam. And dry heat can move Hawthorn a good bit too. I wouldn’t say that Hawthorn heat bends almost as well as yew. Or at least it certainly bends much better than most other white woods!

Whilst I was in bending mode, I used the heat gun to very slightly flick the tips and perfect the string alignment, which was pretty good from the start. Then after a day to reacclimatise after all that heating, I set about finalising the face profile which had been left excessively wide to facilitate better torque when using my G clamps to pull the twist out.

The design I was planning for this stave was nothing fancy. I just wanted a nice, clean, functional, hard shooting right handed flat bow. My idea was for something in the region of 50-60lbs at 28” with a pyramidal face profile merging long fades and nice fine semi static, lightly flicked tips. These tips would be fitted with overlays. The handle would be 4” long, rigid, and without a shelf and inlayed with antler at the arrow pass.

Since the limb face profiles were tapering evenly through the working sections, I wanted to keep the tiller elliptical so as to spread the work evenly across the whole of both limbs. For this reason I also decided to only very slightly flick the semi static tips. This design would maximise the retention of as much of the slight overall reflex as possible. And for the same reason, since the overall length of the stave was now 66” after cutting of the split ends, I was looking to maintain all of that length in the finished bow. This gave me plenty of bow to provide long working limb sections which would help avoid any risk of overstressing a bow which was destined to be drawn to 28”.

With the face profile finished and the handle and fades basic shape finalised, I set the working limb thickness up as close to even as possible. The back of the bow was carrying some undulation and a significant knot presented in the middle of the inner third of the lower limb, so with the gouge and the curved scraper, I followed the limb thickness up and over all the high and low spots to mirror on the belly what was presenting on the back. As time consuming as this process is, it really is worth it in my opinion as it ensures true, even distribution of thickness across the length and width of the limbs. This in turn increases the likelihood of achieving an even distribution of tension and compression throughout the entire length and width of the working sections of the limbs. Extra meat was left around the large knot to provide some extra strength there.

Before proceeding to tillering I wanted to experiment with a process which I’d been wanting to try for some time. This process is called “fuming”. I’d come across this process whilst drooling over some of the beautiful works of art produced by seasoned bowyer Simon Sieß who’s inspirational and informative website can be found here: Stonehill Primitive Bows – Handing the flame on since 2005 (primitive-bows.com)

Simon and I have shared conversations in the past about the whole process of using ammonia fumes to colour and darken tannin rich woods like hawthorn. Simon has a great article on his website which details the process of fuming and can be found here: Fuming experiments – Stonehill Primitive Bows (primitive-bows.com) Inspired by Simon to try fuming hawthorn, I set about following his advice and proceeded to fume this hawthorn stave for two weeks. The colour transformation was wonderful! And the colour transformation had penetrated deeply throughout the fibres of the entire bow, just as Simon had described. Thank you Simon!!

After letting the now damp fumed stave dry for another couple of weeks to remove the strong smell of ammonia as well as restore the staves pre fuming mass, I was now ready to start long string tillering. So I cut in some tillering nocks so that I could get the long string on and see what she looked like when pulled down an inch or two on the tillering tree. A bit stiff in the out thirds was my first thought and the bottom limb was looking considerably stronger than the top limb. So after letting off the outers, and dropping some wood off the whole of the bottom limb things were starting to look quite balanced.

Once I’d got her down to brace height I could see that a little bit of limb twist had returned so a little more dry heat in the top limb got things back to nice and even. I could also now see that a 4” section in the middle of the bottom limb was carrying a bit more reflex than everywhere else. This was resulting in the appearance of a very heavy positive tiller. I decided to heat this reflex out a little to create a more even overall reflex of the bottom limb. This resulted in a much more even looking side profile at brace whilst still maintaining a 3/16” positive tiller overall.

After achieving as good an elliptical tiller as I could I began pulling her down a bit further. I stopped at 22” I checked the draw weight. I was getting around 55lbs at 22” so clearly had a bit of wood still to remove before I could push on down to 26”. So I kept on perfecting both limbs by carefully removing more wood from the bellies of both limb wherever I figured I could improve the evenness of limb thickness or the visual presentation of bend.

Once I was down to 52lbs at 26” I called her done. No signs of any overstressing were noticed and overall, set was minimised to about 1/4 of an inch, which is what I would expect from a nice dry hawthorn stave. Since I was now close to shooting her in, I shaped the handle up to facilitate putting a few arrows through her. Since this required the removal of a fair bit of wood from the handle and fade sections I thought I’d better recheck the string alignment to see if there had been any change. I could now see that the alignment had shifted slightly away in the direction of the right side of the bow.

Since this bow was intended for right handed shooting, I really wanted any string bias to favour the left side of the bow, so I gently reheated the handle section with dry heat once more and eased the tips back across to the left hand side of the bow. Once cooled off thoroughly a quick recheck of alignment with the help of a piece of string and some hand clamps now confirmed that the string alignment was back to just favouring the left side as originally planned. Perfect for a right handed shooter.

Time to shoot in the last 2” of tiller. On went a piece of leather strip would make do for a quick and simple handle wrap/arrow pass. Then out we went for some stump shooting. I like to give all my unfinished bows a good bit of shooting in before committing to final touches. There is nothing more upsetting than going through the whole finishing process only to identify an issue with the tiller once the bow is properly shot in.

I always put at least a couple of hundred arrows through a bow before I consider finishing a bow. Even the most perfect of tillers witnessed on the tillering tree can change dramatically after a few hundred arrows, so I always expect to see some change and need for adjustment before I embark on sanding and sealing a bow. The last thing any bowyer wants to have to do is make tiller adjustments to a bow which has already been finished.

This bow had moved a little during the shooting in phase and the tiller had droped from 3/16th” positive down to about 1/8” positive. I personally think that a bow with these dimentions and draw weight would better suit a 3/16th – ¼” tiller if it’s likely to be shot with split fingers. So I let the top limb off a tad bit more to regain that nice 3/16th” positive tiller. This resulted in the weight being reduced slightly which when combined with the sanding and shooting in was now registering as 52lb at 28”. This was pretty much what I wanted so I was happy with the final weight.

To finish her up I set about fitting her with a nice pair of wild English Red Deer antler tip overlays. The tips where shaped up nice and fine transitioning from flat to triangular. Antler was used as a an arrow pass inlay too. I wrapped the handle with a piece of my own traditional bark tanned deer hide and finished the whole bow with tung oil which really darkened the colour change brought about by the ammonia fuming. Wow! For a bow string I made a 12 stand Flemish twist from B55 which was fitted with beaver fur string silencers.

Now that the tips had been reduced in mass and the bow was completely finished I wanted to shoot her again to get a real feel for any hand shock. I also wanted to hear what she now sounded like with silences fitted to the string. And what a difference tip mass removal makes to the feel of a bow upon release! The little bit of hand shock which I’d earlier felt when shooting her in was gone. And the release was now whisper quiet too. I experience this change all the time and put it down to two things in the main.

First and foremost I believe that most hand shock and vibration in general is due to poorly timed limbs. This is why I favour a 3/16th – ¼” positive tiller on all of the bows which I make which are intended for split fingered shooting. 1/8” just isn’t quite enough to remain permanent in my opinion and can soon get pulled out to neutral, or worse still, negative! Shoot a negatively tillered bow split fingers and feel the vibration and hand shock and you’ll soon know what I’m talking about.

The mass of the tips is the next most important consideration to make when designing a bow to have minimal vibration/hand shock. By minimising the mass above the knocking points especially, as well as throughout the last 6” of the limbs tips, vibration upon release will be reduced significantly. Shout out to many of the incredibly talented bowyer at Primitive Archer forum for emphasising these points to me many years ago.

So to sum this bow up, she ended up being a smooth, quiet, hard shooting bow with no noticeable hand shock and minimal stack. Immediately after unstringing she holds about ½” of deflex which goes back to neutral after resting. She’s nice and light in the hand but packs a nice punch. She would make for a lovely hunting bow (if only!)

Anyway, I hope you enjoyed the story of her build and like the look of her. This bow is now listed for sale in my Etsy shop and is available for purchase here: Primitive Character Hawthorn Selfbow 5228 – Etsy UK

Mass: 732 grams

Length NTN: 65”

Width: 2 1/4” at widest

Tips: 6” semi static 3/8” wide at tips

Back: Marginally crowned with undulations. Face profile pyramidal.

Belly Profile: Working limb sections undulating to mirror back, transitioning at the tips to D shaped then triangular cross sections.

Tiller: Elliptical 1/8” positive.

Brace Height 6″

Draw Weight: 52lbs at 28”

Primitive Character Yew Flat bow 52#@28” (Bow no. 14)

I wanted a yew branch stave to start thinking about beginning work on, so I set about rummaging through the pile of yew branch staves I have in storage. There I came across an interesting and character laden stave which was cut several years ago. I know this because I write the date that all of my staves were cut on one end after the end grain sealer has dried.

This particular branch stave caught my eye because it had a nice bit of wiggle and a few small knots which would add character without compromising strength. This stave was pretty long but one end kicked out massively and also held a dodgy looking bulge/knot. I decided to lop this 8” section off and just try and work with whatever length I was left.

Even with the end missing, I was still left with 63” ish to play with. So now that this stave had been significantly reduced in length, the shorter than ideal overall length would definitely influence the design of this bow, as bows this length and with this much character typically need a bit of thought in order to mitigate stress if intended to be drawn to 28” or more.

Before committing to a build though, I always like to give a stave a bit of axe time in order to get a bit of a feel for the stave, plus to try and identify any major problems I might encounter once work commences properly. 10 mins with the axe and I’d uncovered a potential problem. Hidden under the bark on the belly side of this stave was a drying check, and it looked like it might run deep.

Much of the bark on the face which I’d chosen as the back was very loose. I managed to pop a fair bit of this bark off by hand. I’d managed to uncover the section of sapwood under the crack, and fortunately, I could see no sign of the crack emerging on the surface of the back. Phew!

So I pushed on working down the belly, hoping that the crack would fall out at some point. And to some extent it did but the belly side of the handle section was never going to lose that crack completely, unless I reduced the handle thickness down to proportions which would make it bend slightly. And even then there was a good chance that some of the cracked pith wood would remain within the bow.

I wasn’t averse to this though, as the bow was going to end up fairly short by longbow standards, and a bendy handle would spread the work load by adding an extra 8” (4” handle + 4” fades) of bow to the total length of “working” bow.

After roughing out the belly a bit more to give me some feel for where the bow would best sit, I set about marking out the handle. The best spot for the handle given the crack and the other features was actually about 2″ away from dead centre between the limbs, so I decided to make this bow asymmetrical.

Next I wanted to rough out the face profile so that I could see what the sapwood/heartwood ratios were like, so after popping off as much bark from the limb sections as possible, I took the draw knife to the sides. This stave was only moderately crowned and was always destined to be a flatty, so I worked the edges down to a vague pyramidal profile to see if I could work around the major features without compromising strength.

There were four knots which were large enough to need to be kept away from the edges, two in each limb. Fortunately, all four of these knots could be kept off the edges without having to divert the natural flow of the lateral grain which could potentially compromise the integrity of the bow through excessive grain run out. I always like to follow the grain!

A few pin knots would present on the edges but none of these looked like they would cause me any trouble. The only other issue that the knottiness of this stave would create would be in preventing the application of significant heat bending. Recurving the tips was definitely out of the question as the top tip section was carrying enough knots to cause it to bust off if significant heat bending pressure was applied.

A lack of recurve was actually a good thing as I could now simply reflex the outer thirds slightly leaving both tips static for the last 4” therefore minimising stress to this fairly short stave. Since the handle section plus all but 4” of the tips would be working to some extent, there was now a real likelihood that this bow might even draw to 28”, despite being as short as it was plus having lots of potential weak points, AKA “character”!.

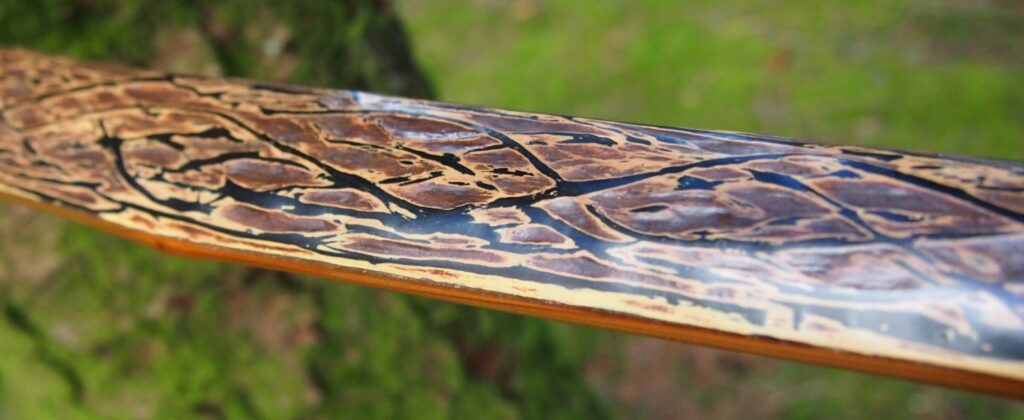

I should probably mention here that after getting all the bark off, I was struck by the beauty of the back of this bow. The sapwood was infected by that gorgeous bluey grey staining which yew sapwood often gets, This gave the back some wonderful colour variation which I know from past experience looks great when finished with a quality hardening oil such as Tung or linseed oil . In addition to the wonderful colour, the back of this stave had quite a bit of nice wiggle and undulation too, all of which was orientating around and over a multitude of pins and knots on both limbs. It reminded me of a piece of driftwood art, only with a tangerine belly!

The ratio of sapwood to heartwood was around 60/40 but there was absolutely no way I was going to attempt to reduce the sapwood on a stave like this one with such a striking and character laden back. So the ratios would have to remain. Not that this was going to be an issue anyway as the heartwood on this bow was that wonderful deep and dense orange stuff with the nice tight growth rings. Yummy!

Once the face profile was established and the handle and fades roughed out, I took a bit of time to study the small amount of twist in both limbs. This would come out easily with dry heat, as would much of the excessive deflex and reflex which was apparent at several points between the fades and the tips of both limbs.

So before going any further, I decided to spend a bit of time getting all the twist out, as well as easing off some of the unsightly deflex and reflex. A total of six sessions with the heat gun spread across a couple of day finally resulted in a stave which now looked completely free from twist and had a fairly even distribution of about 2” of overall reflex.

At this stage I’d left the limbs a bit on the thick side so that I could dig out the belly to mirror the crown and its generally undulating topography. There was no way this bow would have an even distribution of thickness (and therefore stress) unless I followed the back as a guide to dictate the profile of the belly.

So once the final thickness of the sides was established with the drawknife and the rasps, I began to dig out all the dips and valleys with the gouge and curved scraper. As is usually the case, this wasn’t a five minute job, but a job well worth doing all the same – in my opinion. And once I felt that I’d created an even thickness throughout, I set about floor tillering both limbs.

Once both limbs felt and looked like they were bending evenly on the floor, I cut in some tillering nocks and popped her up onto the tiller tree for a few first pulls with the long string. “Pretty good” was my first thought, although I was now made a little more aware of a bit of rather ugly looking deflex which was presenting itself in the top fade and also at a point about one third up the top limb. At this point I should probably say that I’d chosen the top limb to be the limb which had a rather nice wiggly tip section. I could imagine this tip looking great once refined and augmented with a nice elegant overlay.

This delfex in the fade just would not do however. It would not be possible to remove it completely but I felt confident that much of it could be reduced. I should also say that the top limb which contained this 4” deflexed fade was showing significantly weaker than the bottom limb on the tiller tree. So by straightening out as much of the deflex in this weaker top limb, I’d hopefully enhance the look of the top limb whilst simultaneously added some strength to it.

I couldn’t be bothered with trying and steam bend out the deflexed fade, so I simply clamped the deflexed fade over one of my reflex forms and gave it a good heating up with the heat gun. After a couple of attempts I was much happier with the small amount of deflex which remained. The heating process had also added significant strength to the top limb too and now had the bow presenting a ¼” positive tiller.

Conscious that some of the newly applied heat adjustment might pull out, I opted to reduce the bottom limb a tad in a couple of very slightly stiff spots. Brace height was achieved quickly thereafter and in no time I was pulling down to 22”.

A quick check with the scale showed around 40# at 22” which wasn’t too bad considering the amount of belly wood which had come off in order to lose the initial cracked section. I figured 28” would be pushing 50# by the time the tillering was finished so was quite happy with where she was at this point.

A few more tweaks with the scraper and 26” was reached quite quickly. Time to check tiller, string alignment (which was pretty good all along), and also check to see if any twist had returned. The tiller was holding firm at ¼” positive and the string alignment looked to be dead centre. A very small amount of twist had returned to the last 10” of the bottom limb tip. So a quick session with the heat gun took the twist out again and all was looking quite good.

The pith wood cracks in the handle section were not going to fall off this bow since I had already narrowed the handle thickness as much as I could. Any more wood removal from the handle and fades would see them start bending too much. In my experience, too much bend in the handle ends up robbing a bow of significant cast. I wasn’t going to take this risk just to lose a few pith wood cracks which were never going to compromise anything other than aesthetics.

So instead, I opted to pump all the handle/fade cracks and belly knots full of good old nice thin super glue, so that they would stay shut up forever and would sand nice and smooth for finishing. In no way would any of these features ever compromise the structural integrity of this bow.

The scale was reading around 49 ish# at 26” and everything was looking quite good so I called it done for now, opting as usual to shoot in the last 2“ of tiller. A couple of weeks of stump shooting with this bow was great fun and I was pleased to see that the tiller still felt very well balanced for split fingered shooting and had only reduced by a fraction.

After a lot of shooting she had settled into a tiller of 3/8” positive. Limbs felt and sounded like they were timing well which is likely why no hand shock was apparent when shooting this bow, even with the limb tips left wide for temporary tillering nocks.

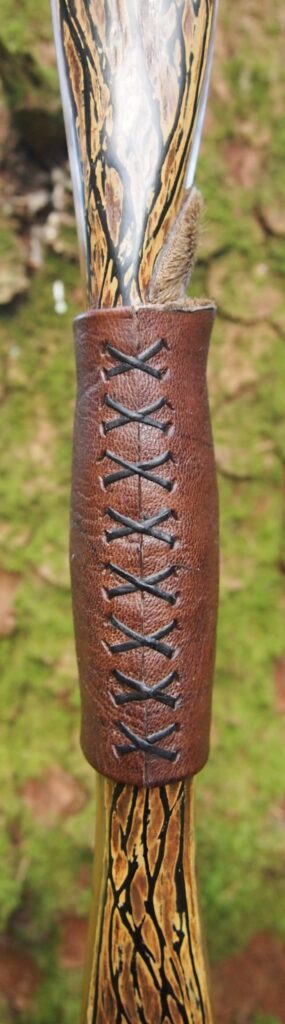

Happy with the tiller and having proven that the bow was a survivor, I cracked on with finishing her. I gave her a pair of buffalo horn tip overlays and a good sanding and polishing before sealing her up with a bunch of coats of oil. The handle was begging to be kept simple and since she was always destined to be shot off the knuckle, I opted to wrap the handle primitive style with a nice strip of deer rawhide which I stained black with an application of bark tannin solution followed up with some home made iron chloride. The black rawhide wrapping matched the buffolo horn tips which I thought was both fitting and functional.

With the bow finished I put another hundred or so arrows through her to see what she felt like now the handle was wrapped up and the tips had been refined. She was now more comfortable to hold and a fair bit quieter to shoot too. The beaver fur string silencers were helping in this regard but I always notice a reduction in vibration when a bow has mass reduced from the tips. And since the tips on this bow were reduced by quite a bit after the initial shooting in phase, I felt sure that the final fine tips not only quietened the bow significantly but they also sped her up a fair bit too. A final check on the scale was reading 52# at 28”. A good weight for most flatty fanatics (myself included). I really like this bow. I think she looks great and is a real character. She’s a pleasure to shoot being quiet, smooth to draw and pretty fast. She was sending 550 grain arrows whistling along to their destination with ease and I was quietly entertained by the noticeable slap that those stump heads were being delivered with.

Anyway, I hope you enjoyed the story of her build and like the look of her. This bow is now listed for sale in my Etsy shop and is available for purchase here: Primitive Character Yew Longbow 5228 – Etsy UK

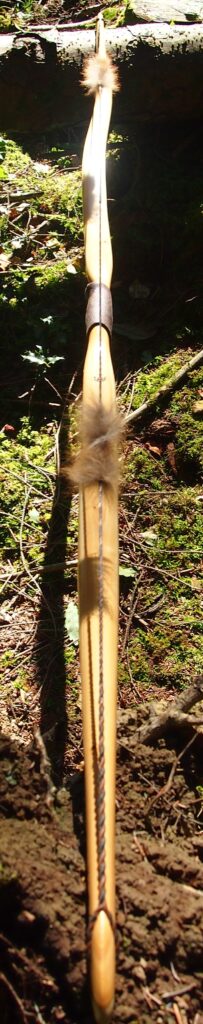

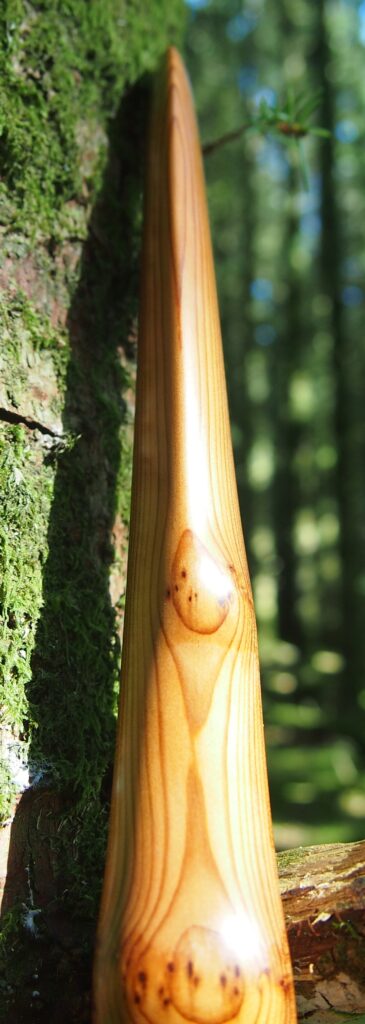

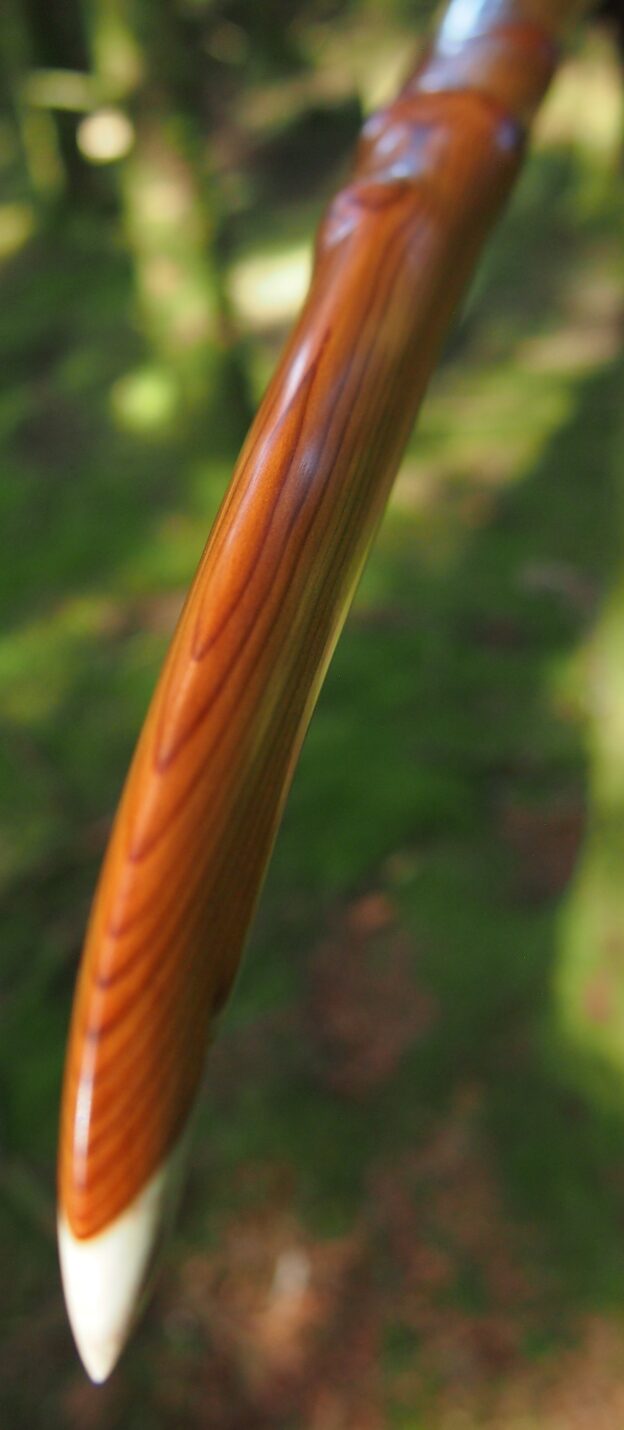

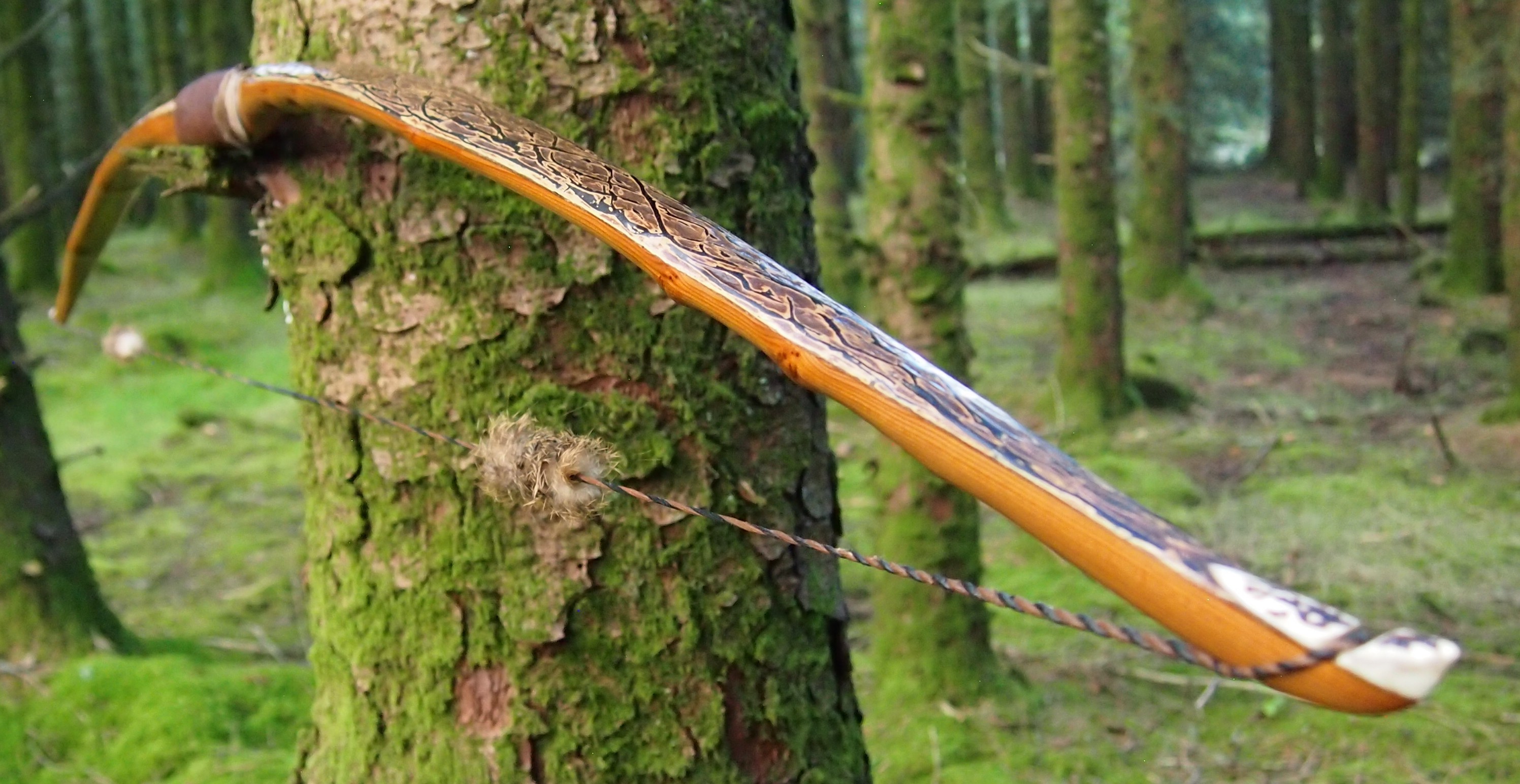

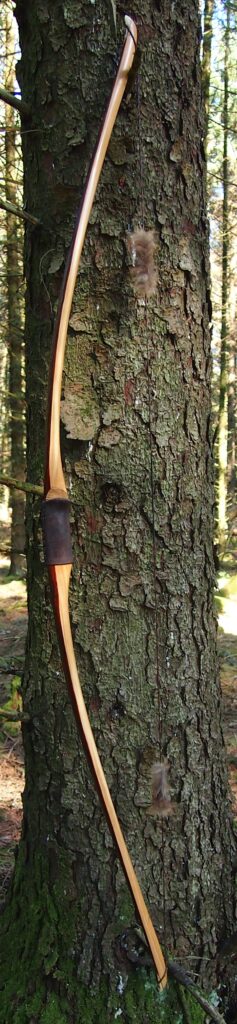

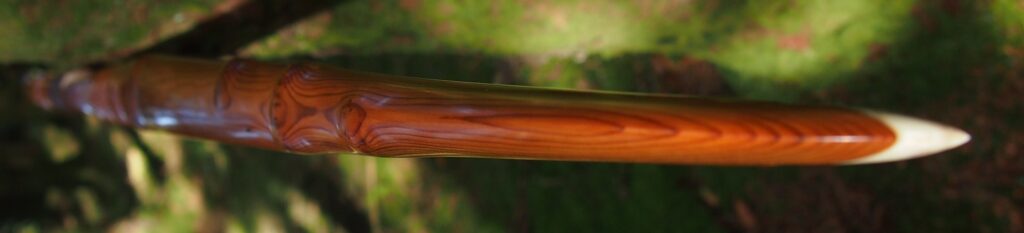

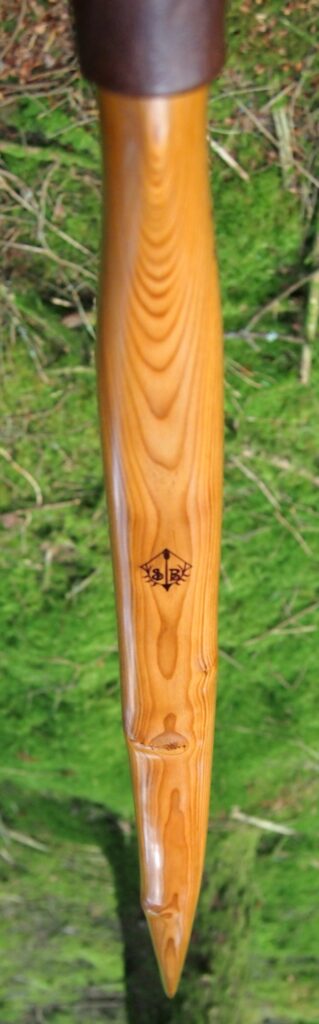

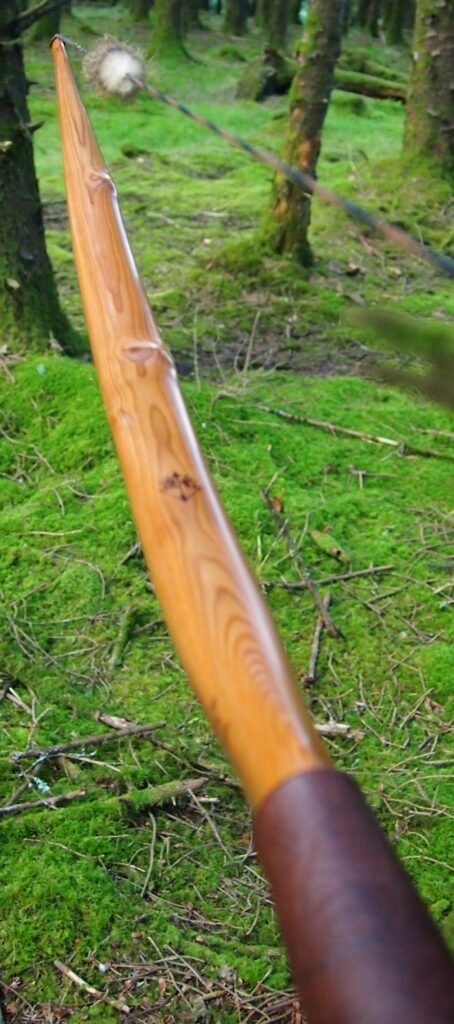

Here are her stats and a bunch of pics. Enjoy!

Mass: 664 grams

Length NTN: 61.5”

Width: 2” at widest

Tips: 4” static 3/8” wide at tips

Back: Marginally crowned with undulations. Face profile pyramidal.

Belly Profile: Working limb sections undulating to mirror back, transitioning at the tips to D shaped then triangular cross sections.

Tiller: Elliptical 1/8” positive.

Brace Height 5 1/2″

Draw Weight: 52lbs at 28”
